40’x80′ Pole Barn Pavilion Plans with Double Lean, Garden Gazebo Blueprints, Backyard Shade Pergolas Structures DIY Woodworking Instructions
Plan
click for gallery
Plan Pricing from $60
Get Today's Discount Promo Code
Total price: 0.00 $
| Width: | 40' |
|---|---|
| Depth: | 80' |
| sq ft: | 3200 |
| Units: | Imperial Units |
| House style: | DIY Plans, Modern, New Plans |
| Plan Type: | Pavilion |
In this listing, you will find step-by-step DIY instructions for building a well-designed shade structure that not only provides relief from the sun but also enhances the look and feel of your patio or deck.

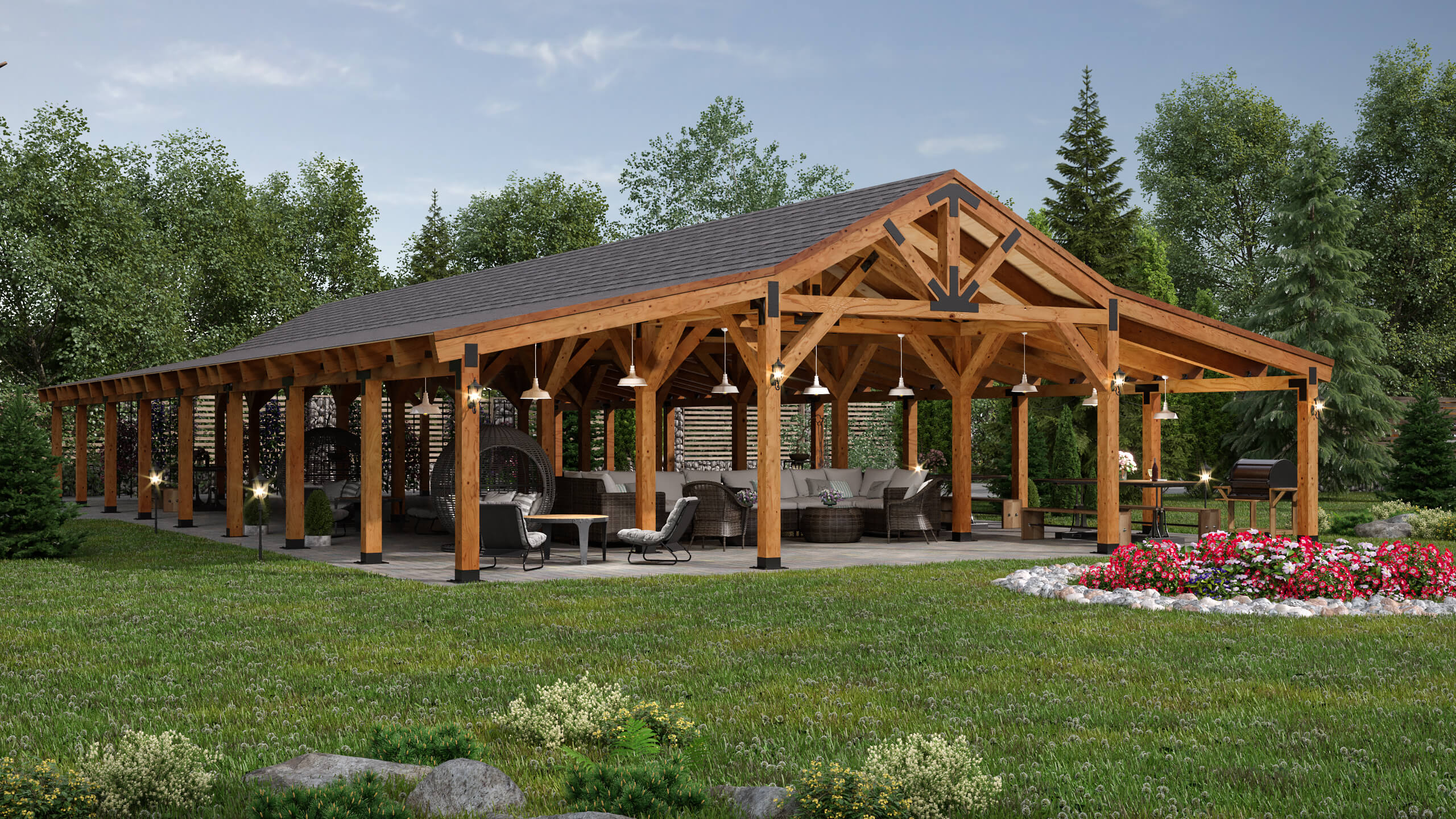

This guide will walk you through the process of constructing a 40’x80′ pole barn pavilion, offering the perfect DIY project to create a stylish and functional outdoor retreat.
🌟 Build Features:
■ Build Size: 40’x80’
■ Overall Height: 15’
■ Foundation: Reinforced concrete

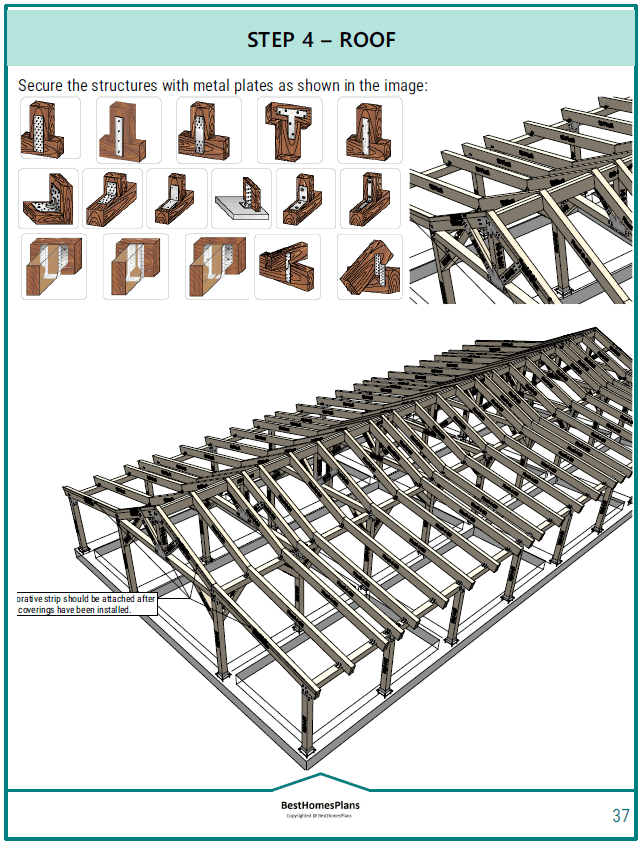

■ Roof Truss: 6×12 48″ O.C.
■ Roof Pitch: 27°/12°
■ Support pillars: 8×8
■ Beams : 8×8
The plan is provided for personal use only and is copyrighted by BestHomesPlans.
Commercial use or redistribution is strictly prohibited.
Thank you and Good Luck)
Material & Cut List
Tools List

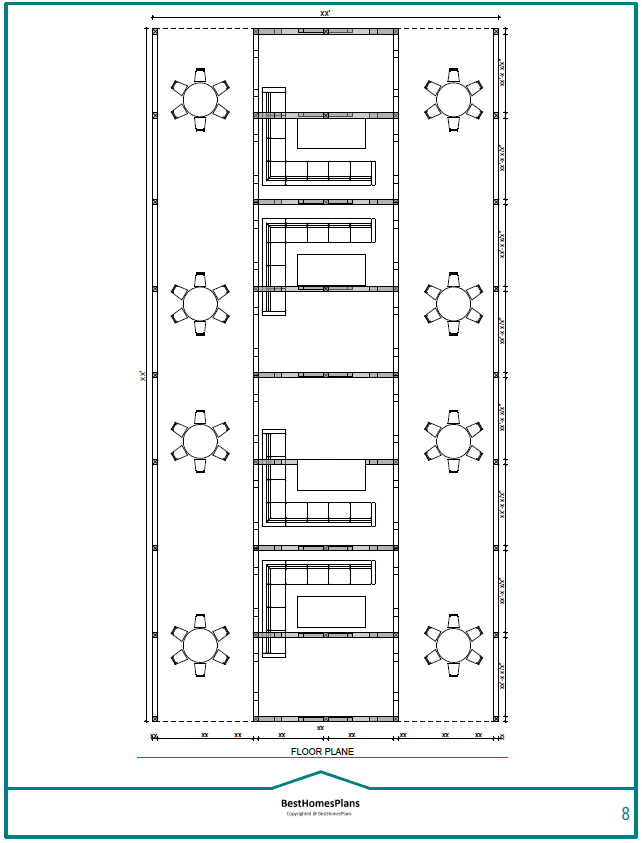

Full 2D Plans
Step-by-Step Instructions
3D Diagrams
Detailed Drawings
Helpful Tips
