House Plan 10011
22’x38’ Small A-Frame Cabin Architectural Plans, 2-Bedroom, 1-Bathroom, 596SF Living Area Blueprint Set

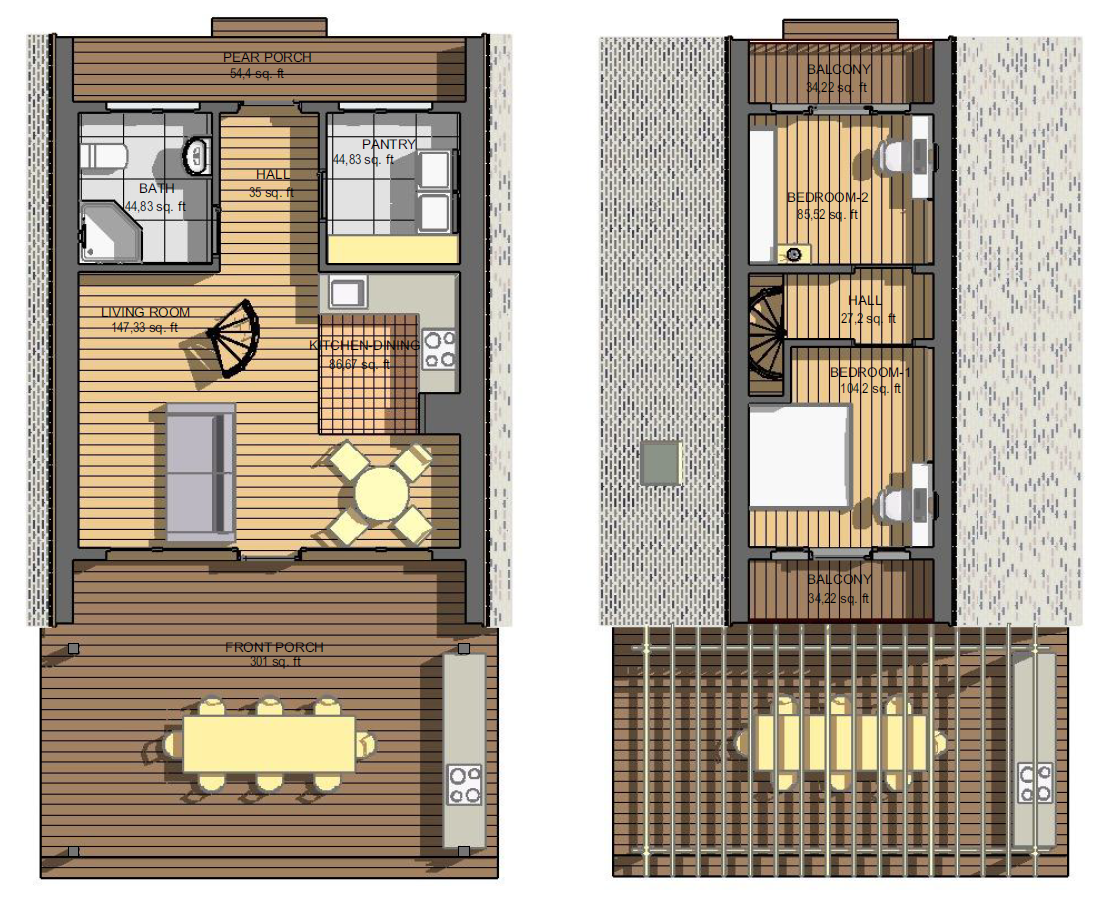

Level One
click for gallery
Level Two
click for gallery
Level One
click for gallery
Level Two
click for gallery
Plan Pricing from $144.95
Get Today's Discount Promo Code
Total price: 0.00 $
| Beds: | 2 |
|---|---|
| Baths: | 1 |
| Width: | 22' |
| Depth: | 38' |
| sq ft: | 596 |
| Foundation Type: | Sonotube |
| Units: | Imperial Units |
| Garage Bays: | No Garage |
| House style: | A-Frame |
| Plan Type: | House |
Introducing a charming two-story residence with a Total Building Area of 1,195 square feet and an elegant architectural design.
The Building Footprint covers a substantial 867 square feet, hosting a thoughtfully planned living space over two stories with 596 square feet of Living Area,
thoughtfully divided into two bedrooms, making it an ideal home for a small family or individuals seeking a cozy yet spacious dwelling.
This residence features an inviting Porch Area spanning 366 square feet, offering a perfect spot for relaxation and socializing.
The practical layout encompasses two Bedrooms and a well-appointed Full Bath, catering to the essential needs of the occupants.
Save hundreds $$ on architectural fees! These precise and detailed drawings are sufficient for a contractor to frame the house walls.
You can then easily customize the rest of the house and choose the finishes that match your style.

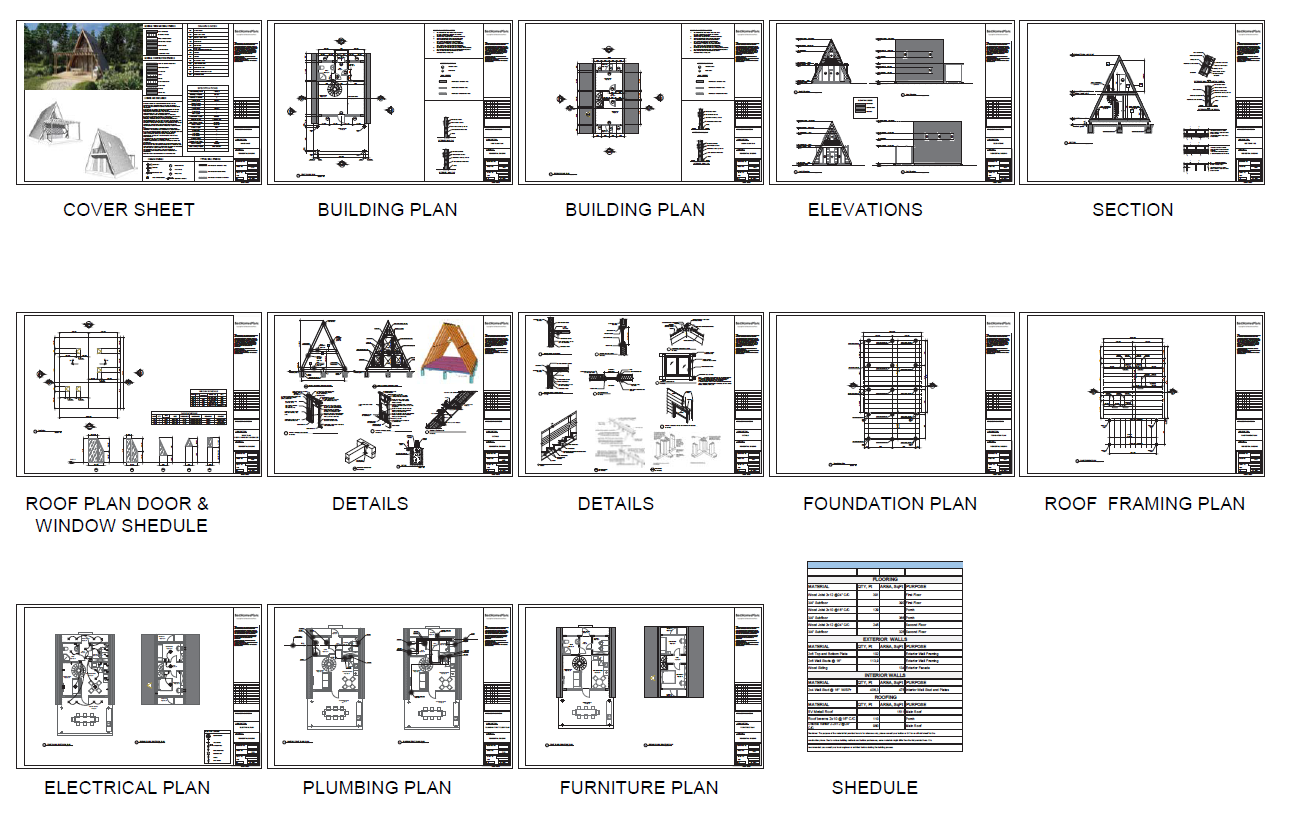

What is included:
- Materials List

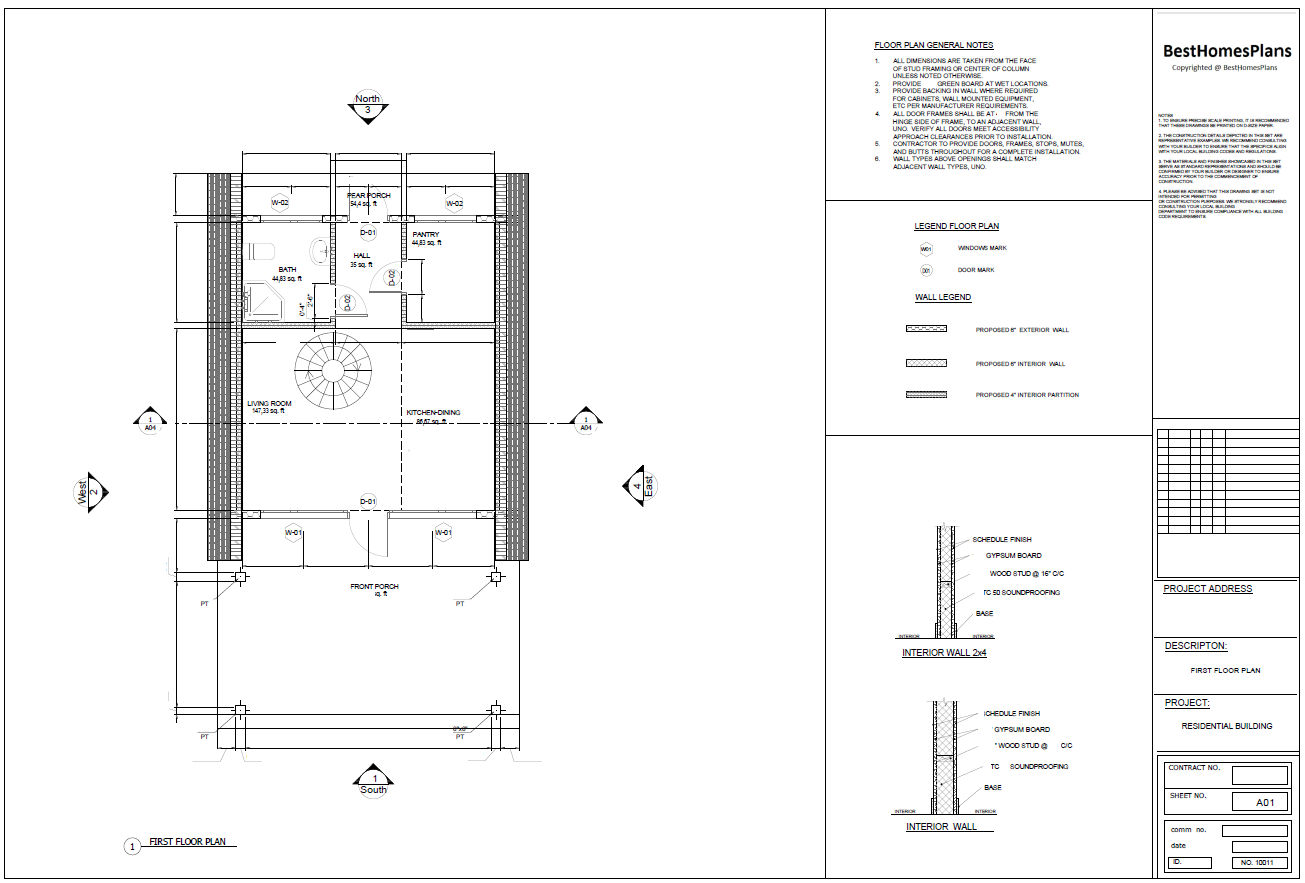

- Floor Plans

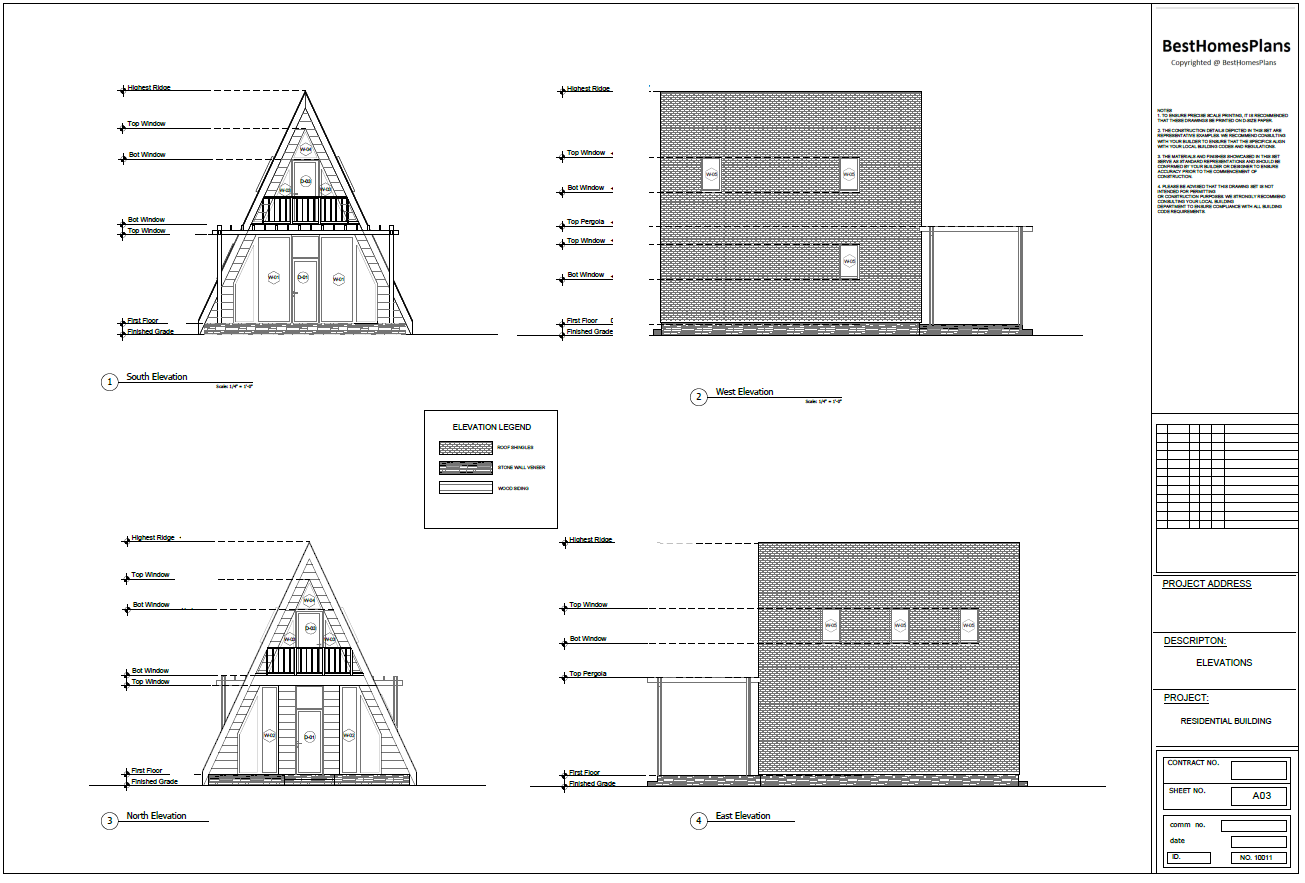

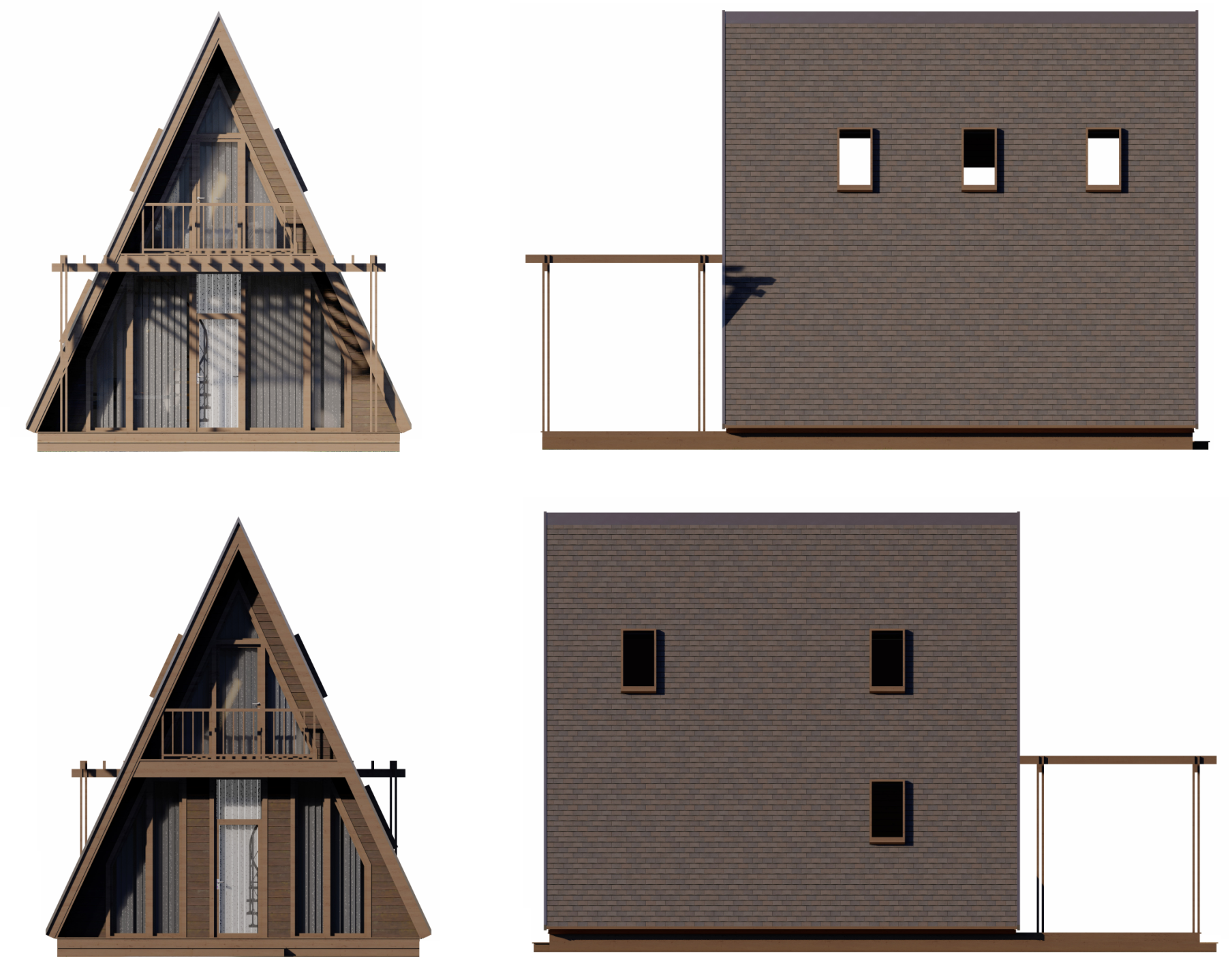

- Elevations Plans
- Roof Plan

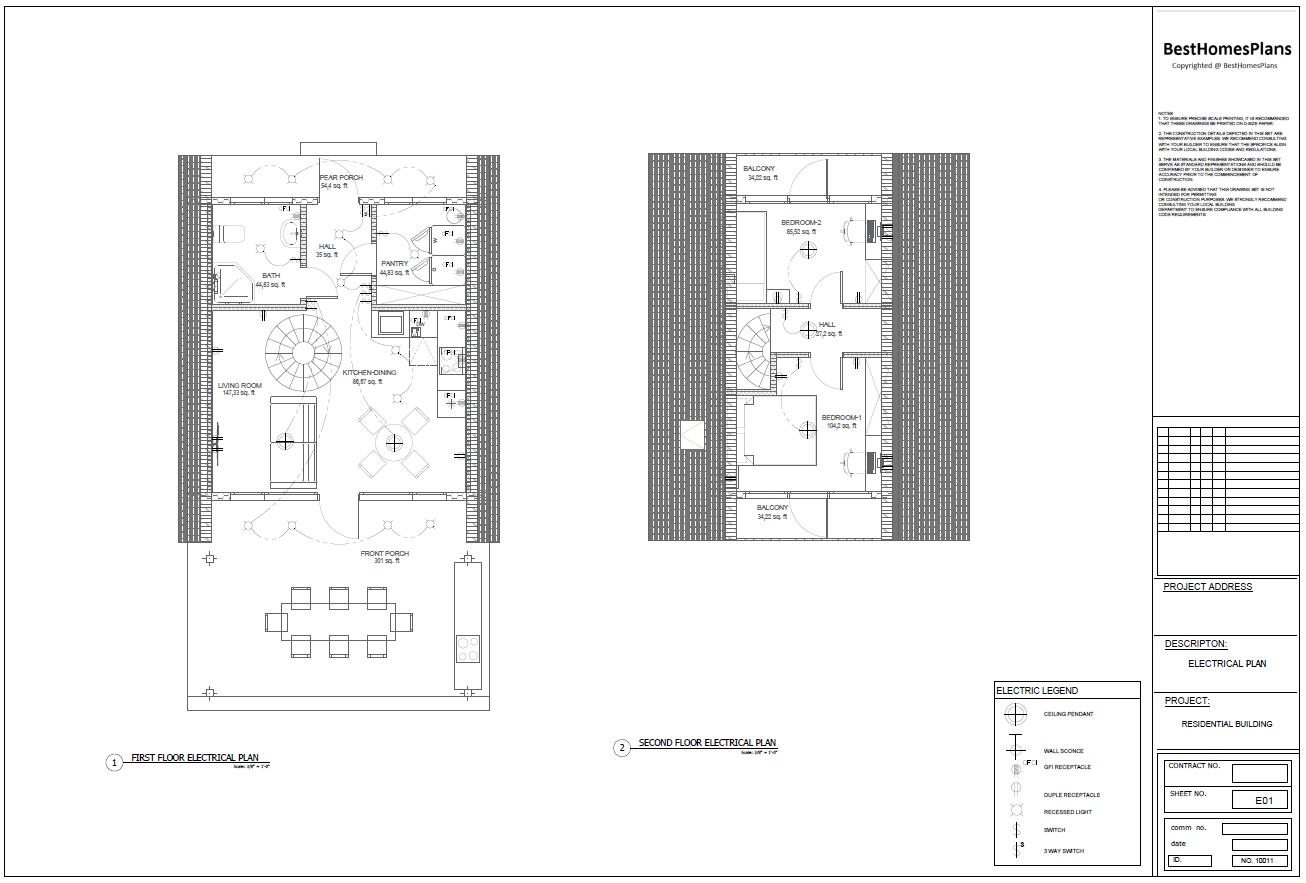

- Electrical Plan
- Plumbing Plan

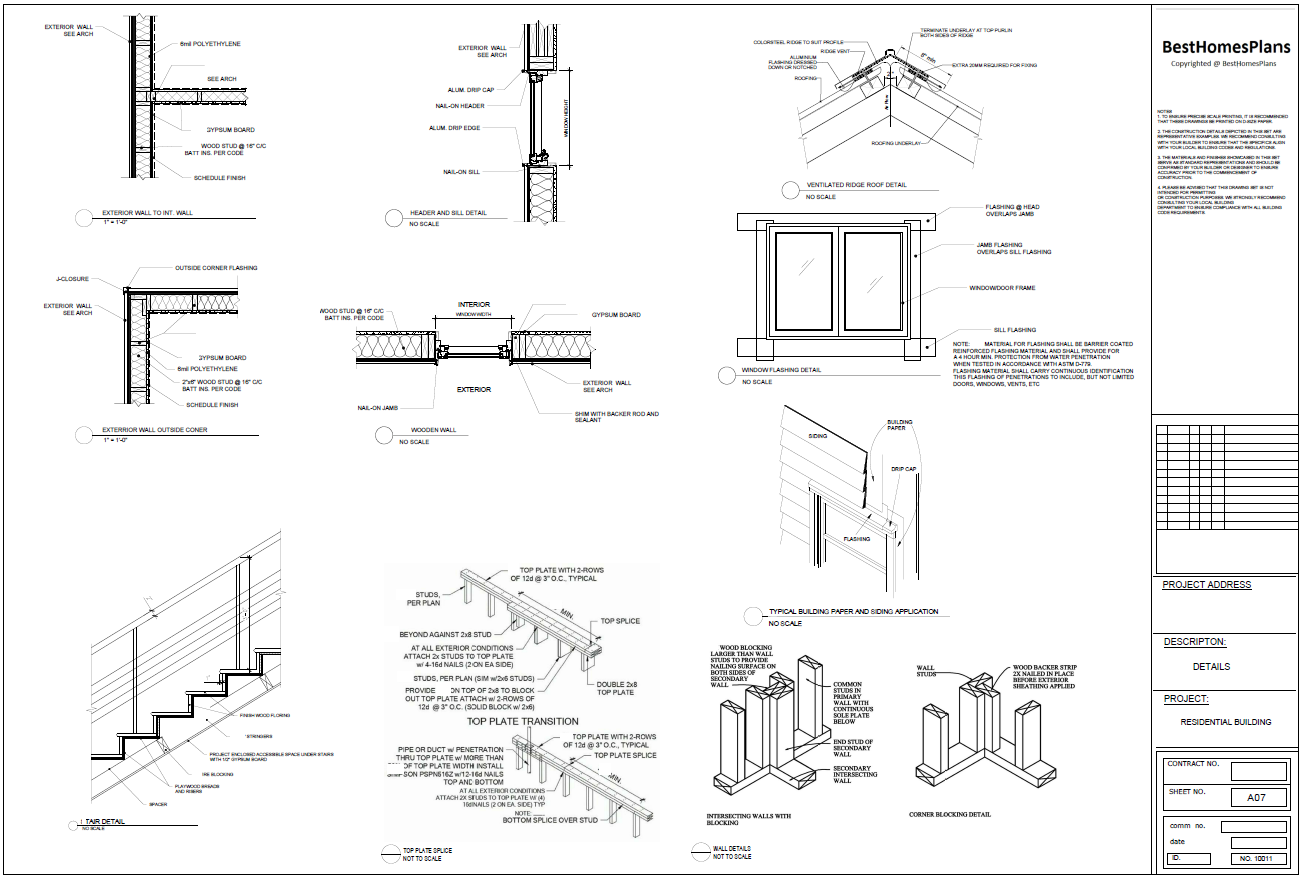

- Foundation/Roofing Details
- Door/Window Schedule
- Fully dimensioned and annotated
- Porches
Specifications:
- Total Building Area: 1 195 sq ft
- Building Footprint 867 sq ft
- Number of Stories: 2
- Living Area: 596 sq ft
- Porch Area: 366 sq ft
- Foundation Types: Sonotube
- Exterior Walls: A-Framing / 2×6
- Max Ridge Height: 24′-10 3/4″
- House Width: 22′-10 1/2”
- House Depth: 38′-7”
- Bedrooms: 2
- Full Baths: 1
- Primary Roof Pitch: 12:26
- Roof Framing: A-Framing
- Main Ceiling Height: 9′-6″ / 12′-5 3/4″‘
Due to variations in different States and local building departments,
these plans are not intended for immediate permitting but can be adjusted by your builder or designer if needed.
The plan is provided for personal use only and is copyrighted by BestHomesPlans.
Commercial use or redistribution is strictly prohibited.
Thank you, and Good Luck)
Materials List (For reference only)
Floor Plans
Elevations Plans
Roof Plan
Electrical Plan
Plumbing Plan
Foundation/Roofing Details
Door/Window Schedule
Fully dimensioned and annotated
Porches
