House Plan 20034
80’x60′ A-Frame House Plan PDF | Double A-Frame Cabin Floor Plan | 4 Bedroom 3 Bath Home Design | 2-Story A-Frame w/ Porch, Attic, Office.
Level One
click for gallery
Level Two
click for gallery
Plan Pricing from $144.95
Get Today's Discount Promo Code
Total price: 0.00 $
| Beds: | 4 |
|---|---|
| Baths: | 3 |
| Width: | 80` |
| Depth: | 60' |
| sq ft: | 3203 |
| Units: | Imperial Units |
| Garage Bays: | No Garage |
| House style: | A-Frame, Duplex, Modern, New Plans |
| Plan Type: | House |

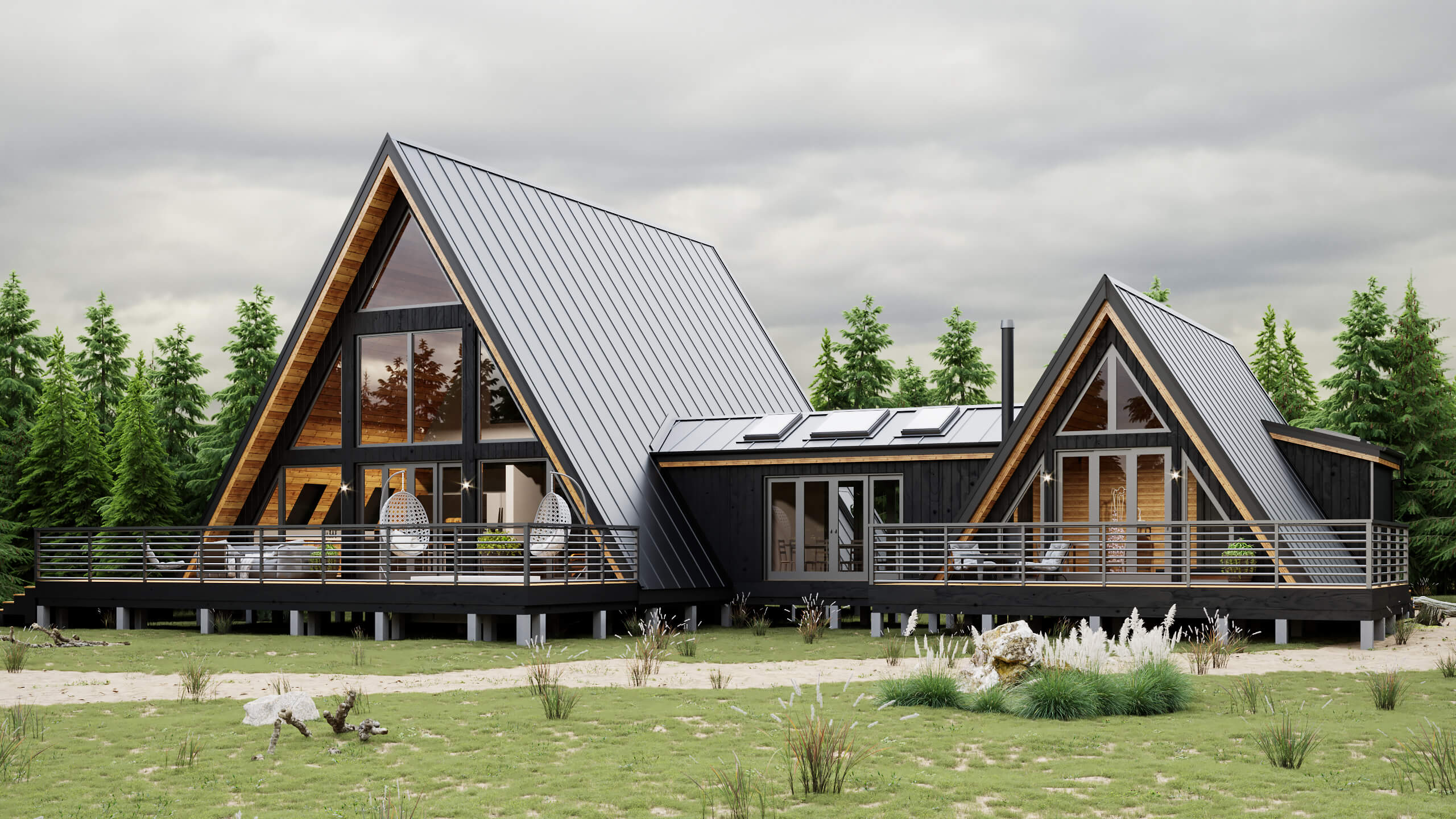

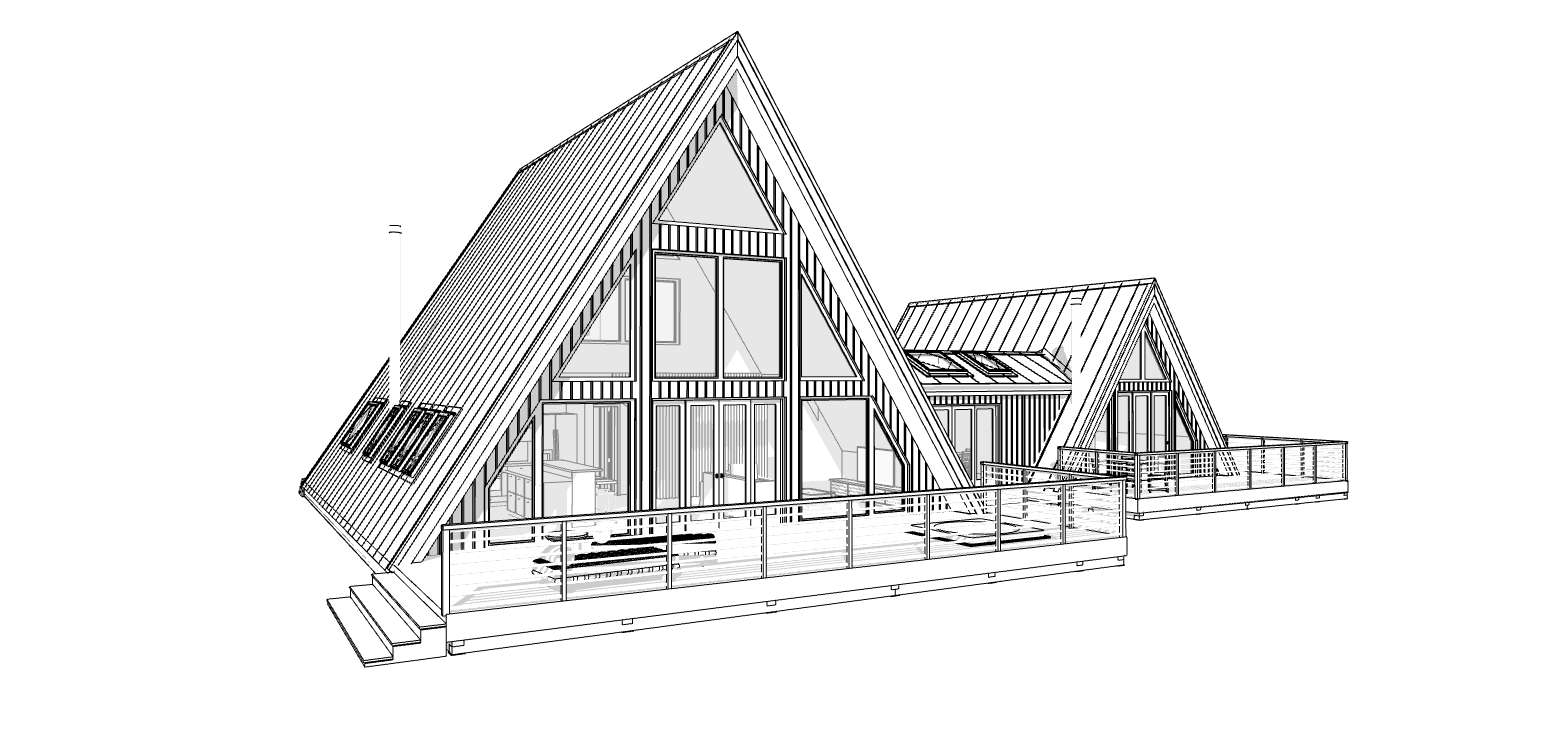

Double A-Frame House Plan PDF – 4 Bedroom, 3 Bath, 2-Story Cabin Design with Porch, Office & Finished Attic – Instant Download – Imperial Units.
Looking for a cozy, modern A-frame house plan with plenty of space and architectural charm? This downloadable Double A-Frame home design combines rustic elegance with modern practicality — perfect for a vacation getaway, family cabin, or full-time residence.
✅ Imperial Units Only — All measurements are in feet and inches, making it easy to follow for U.S. builders and designers.
📐 Home Plan Specifications:
▪️Total Building Area: 3,203.32 ft²
▪️Building Footprint: 3,694.05 ft²
▪️Living Area: 2,172.32 ft²
▪️Stories: 2
▪️Bedrooms: 4
▪️Bathrooms: 3 Full
▪️Porch Area: 1,031 ft²
▪️Fully Finished Attic
▪️Foundation: Spread Footing Foundation
▪️Max Ridge Height: 29′-3 1/16″
▪️House Width: 80′
▪️House Depth: 60′
▪️Roof Pitch: 57°
▪️Roof Framing: Wood Truss
▪️Main Ceiling Height: 8′-6″
🛋️ Interior Layout Breakdown:

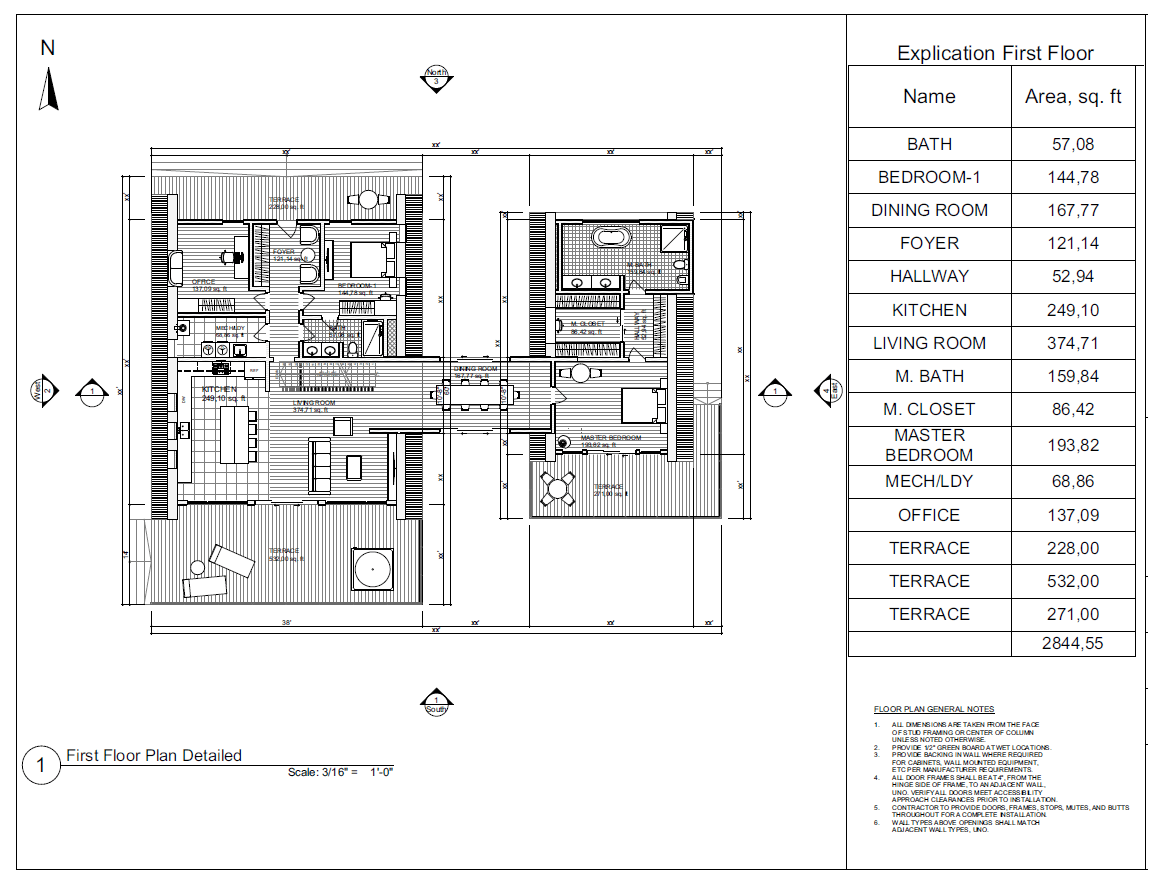

First Floor (Total: 2,844.55 ft²):
▪️Bedroom 1: 144.78 ft²
▪️Master Bedroom: 193.82 ft²
▪️Living Room: 374.71 ft²
▪️Dining Room: 167.77 ft²
▪️Kitchen: 249.10 ft²
▪️Office: 137.09 ft²
▪️Foyer, Hallway, Closets: 260+ ft²
▪️2 Bathrooms: 216.92 ft²
▪️Mechanical/Laundry: 68.86 ft²
▪️Outdoor Terraces: 1,031 ft² combined

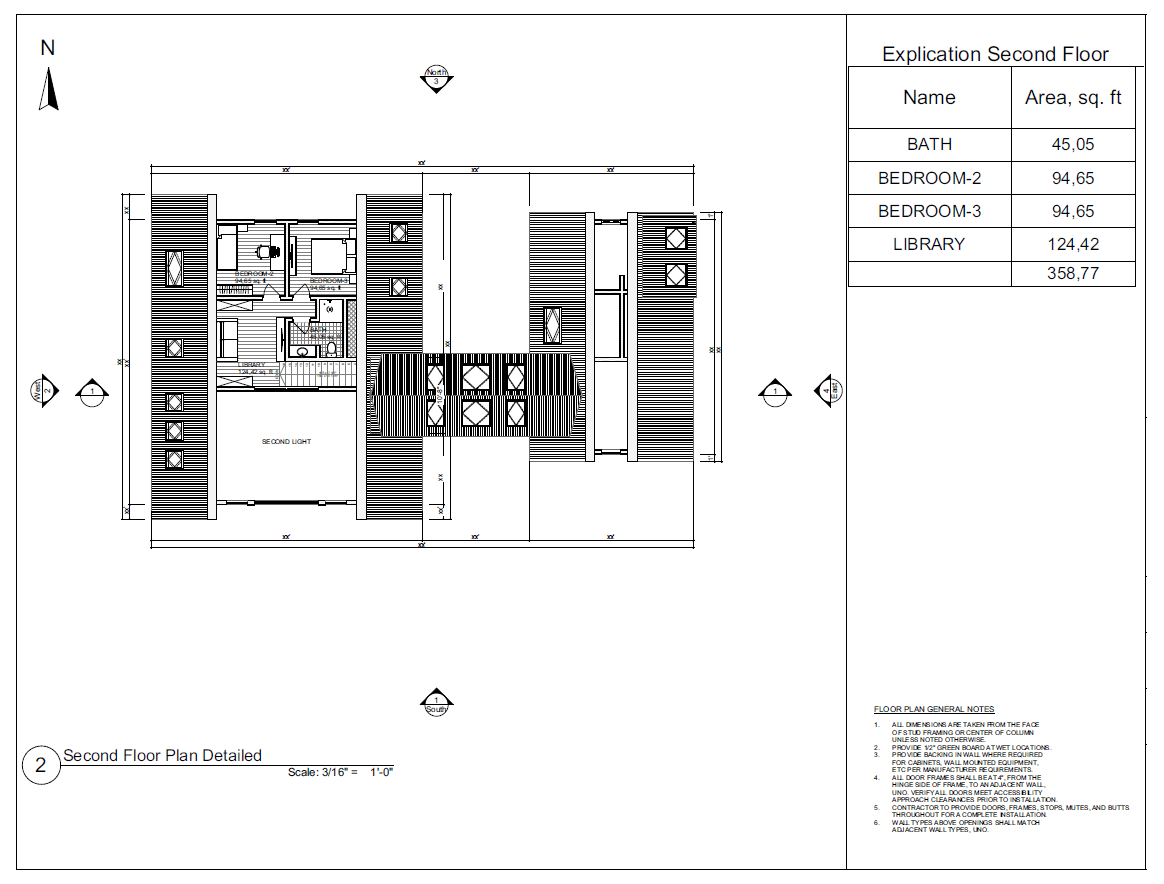

Second Floor (Total: 358.77 ft²):
▪️Bedroom 2: 94.65 ft²
▪️Bedroom 3: 94.65 ft²
▪️Library: 124.42 ft²
▪️Bathroom: 45.05 ft²
We encourage you to subscribe to our store and add it to your favorites.
Since we strive to add at least one new project per week regularly.
Stay up to date with our latest offers.
After purchasing the plan, you will receive a PDF file from Etsy.
The plan is provided for personal use only and is copyrighted by BestHomesPlans.
Commercial use or redistribution is strictly prohibited.
Thank you and Good Luck.
Material & Cut List
Tools List
Full 2D Construction Plans
Step-by-Step Building Instructions

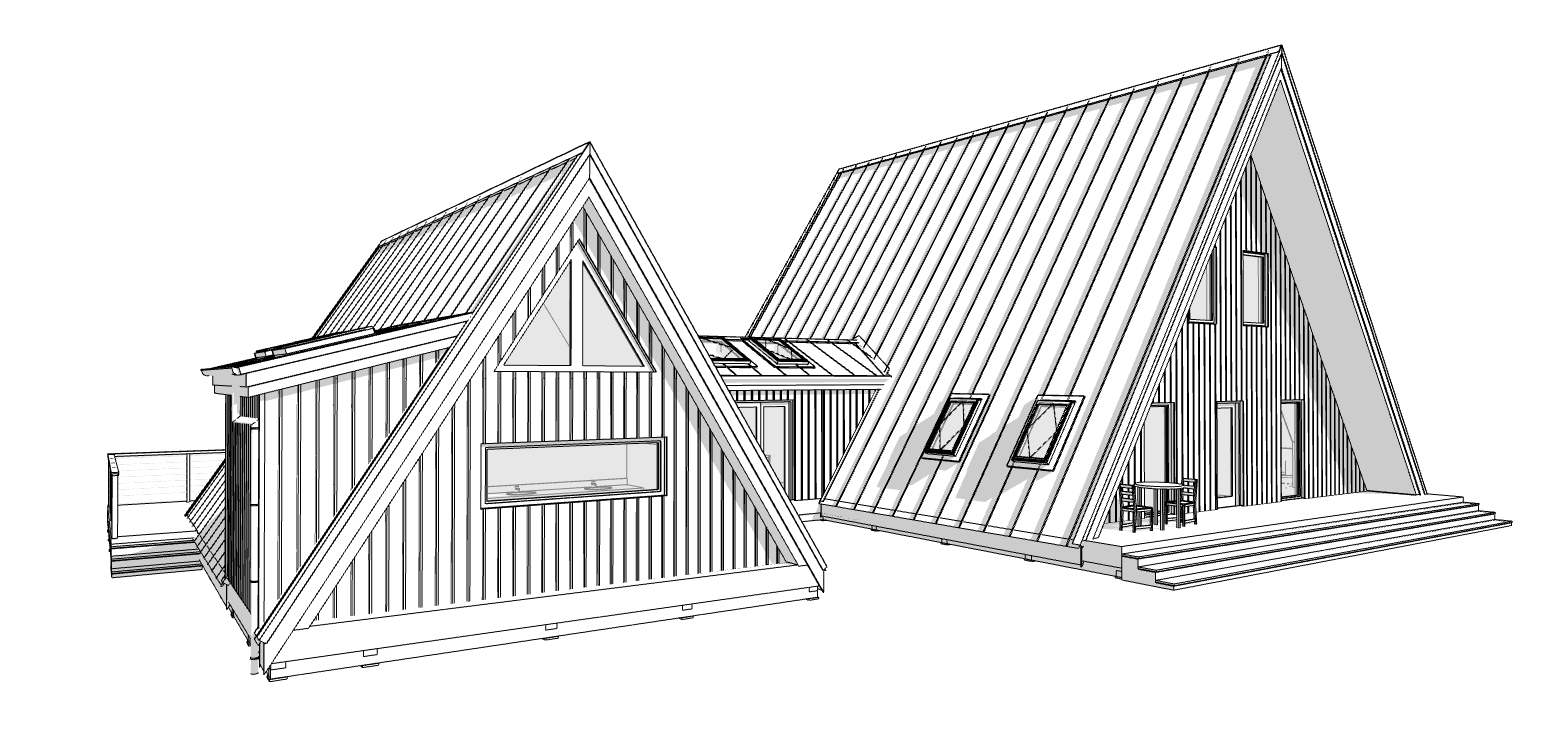

3D Diagrams & Detailed Drawings
Helpful Tips to Guide Your Build
