House Plan 20036

Total price: 0.00 $

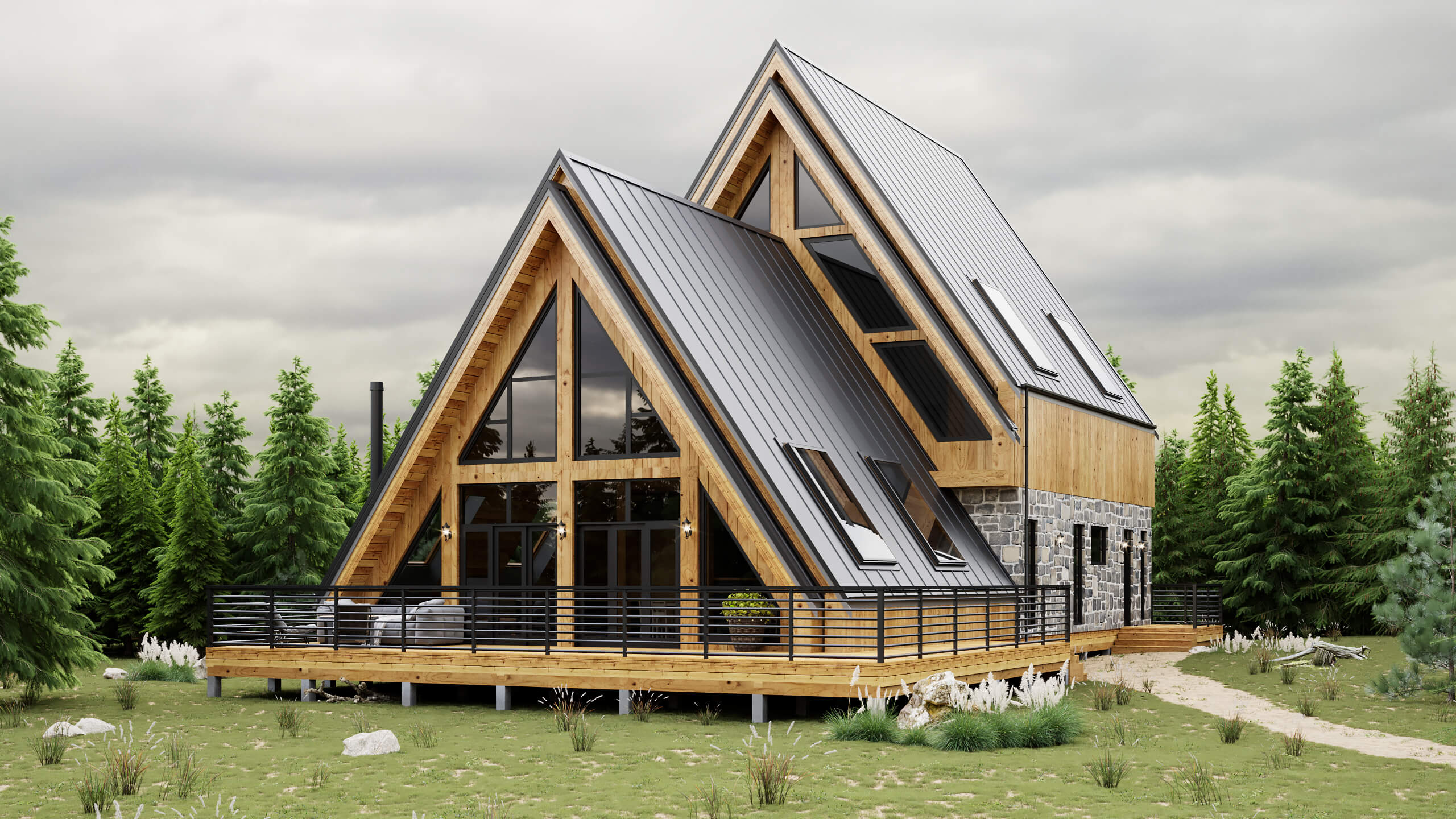

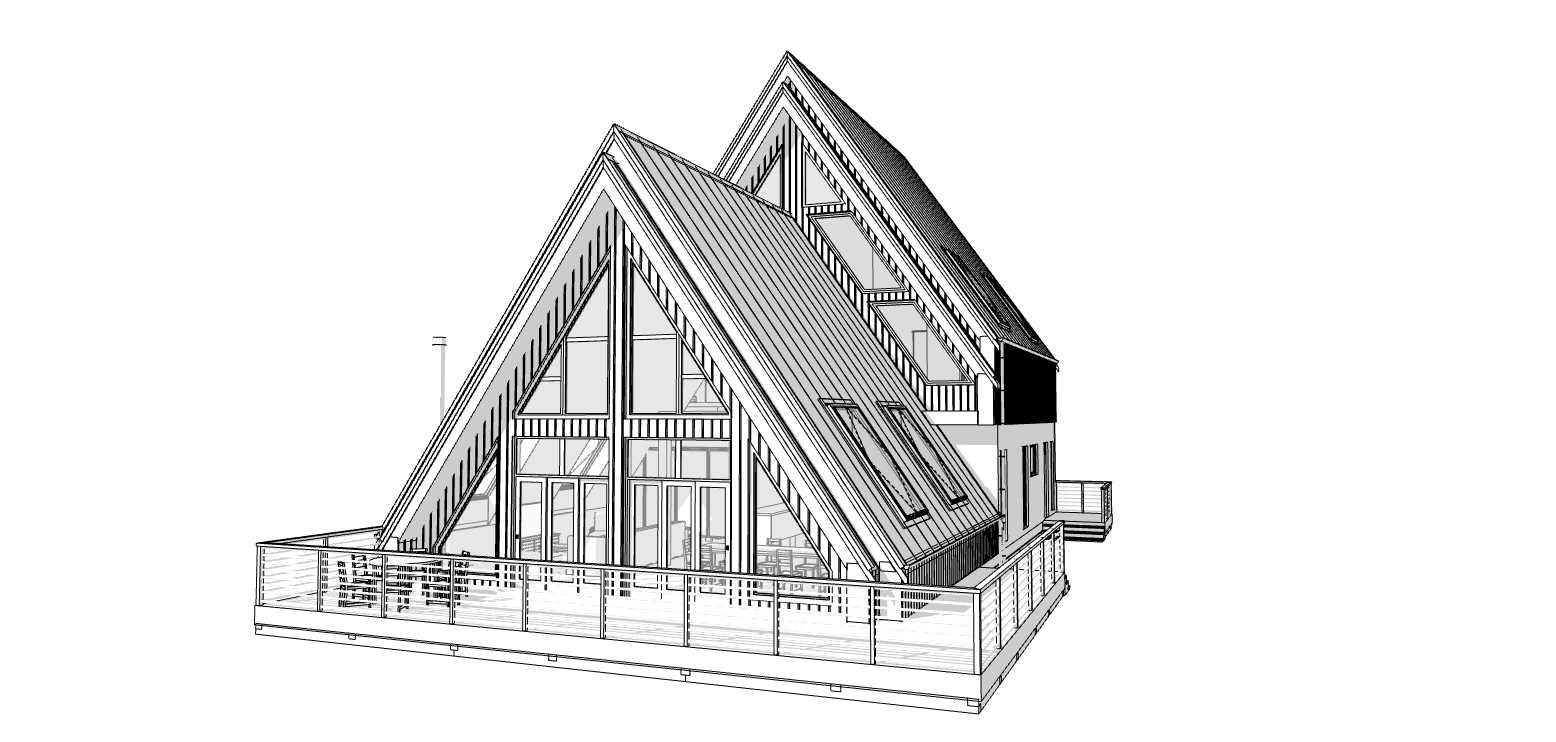

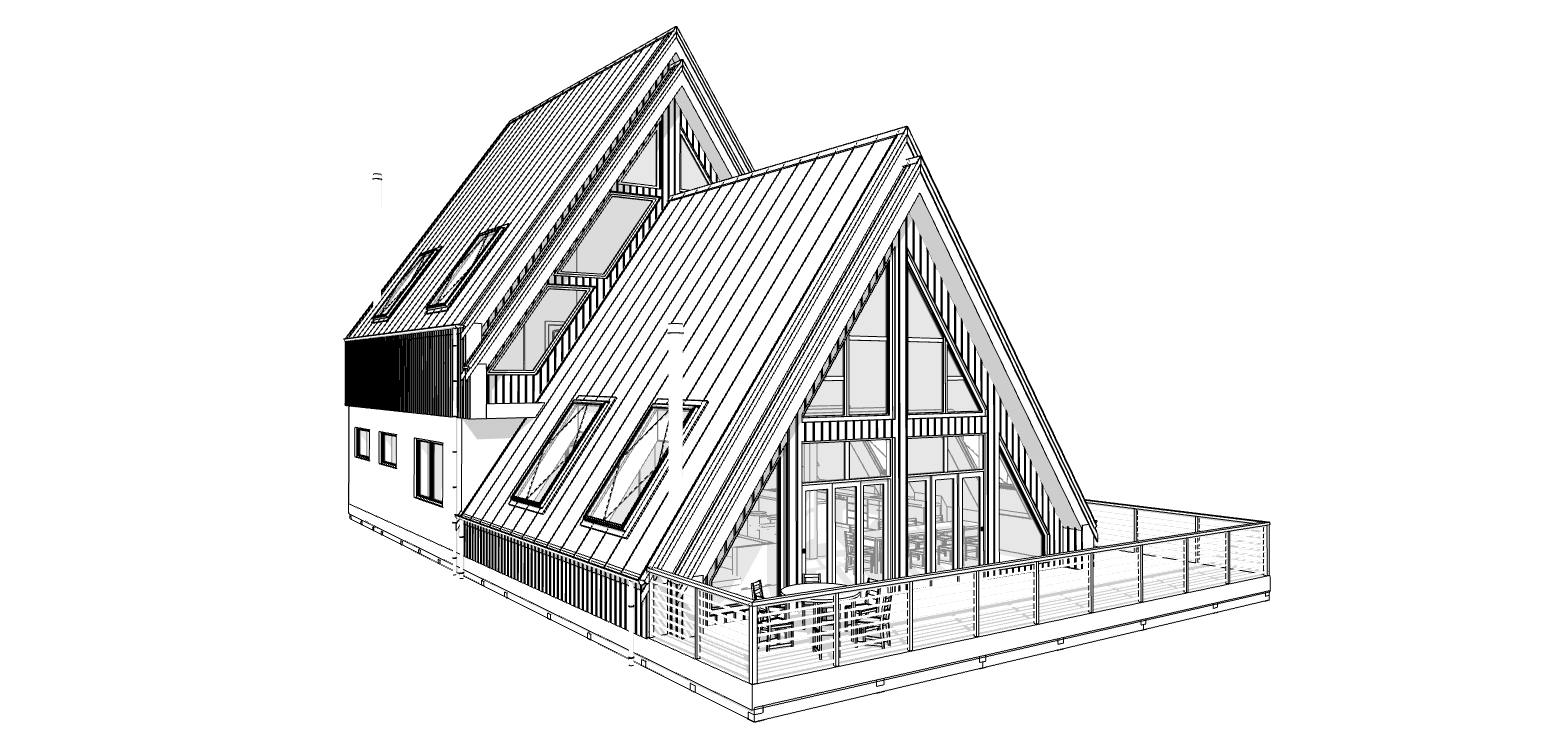

4 bedroom house plans, 2-story modern A-Frame cabin plans, PDF home blueprints in imperial units. This digital download features a fully detailed architectural design ideal for construction in the U.S. market. The house includes a fully finished attic, wood truss roof framing with a steep 55° pitch, and a spread footing foundation for lasting durability.

🏠 Plan Specifications:
■ Total Building Area: 3,538.76 ft²
■ Living Area: 2,953.73 ft²
■ Building Footprint: 2,901.00 ft²
■ Porch Area: 585.03 ft²
■ Number of Stories: 2
■ Bedrooms: 4
■ Full Bathrooms: 3
■ Half Bathrooms: 1
■ Attic: Fully Finished Attic
■ Foundation Type: Spread Footing Foundation
■ Roof Framing: Wood Truss System
vPrimary Roof Pitch: 55°
■ Maximum Ridge Height: 42′-5/8″
■ Ceiling Height (Main Floor): 10′-1″
■ House Width: 35′
■ House Depth: 65′
■ Units: All measurements in Imperial (feet and inches)

🧱 Floor Area Breakdown (Imperial Units):
🔹 First Floor
■ Foyer / Entryway – 8′ x 10′
■ Living Room – 18′ x 20′
■ Dining Room – 12′ x 14′
■ Kitchen – 14′ x 16′ (includes island and pantry)
■ Walk-In Pantry – 5′ x 6′
■ Guest Bedroom / Office – 12′ x 13′
■ Full Bathroom (1st Floor) – 6′ x 9′
■ Half Bathroom (Powder Room) – 5′ x 5′
■ Laundry / Mudroom – 8′ x 10′
■ Stairwell Area – 6′ x 10′
■ Hallways & Circulation – ~100–150 ft² total
■ Covered Front/Rear Porch Area – Combined total: 585.03 ft² (exact dimensions vary)

■ Main Floor Ceiling Height: 10′-1″

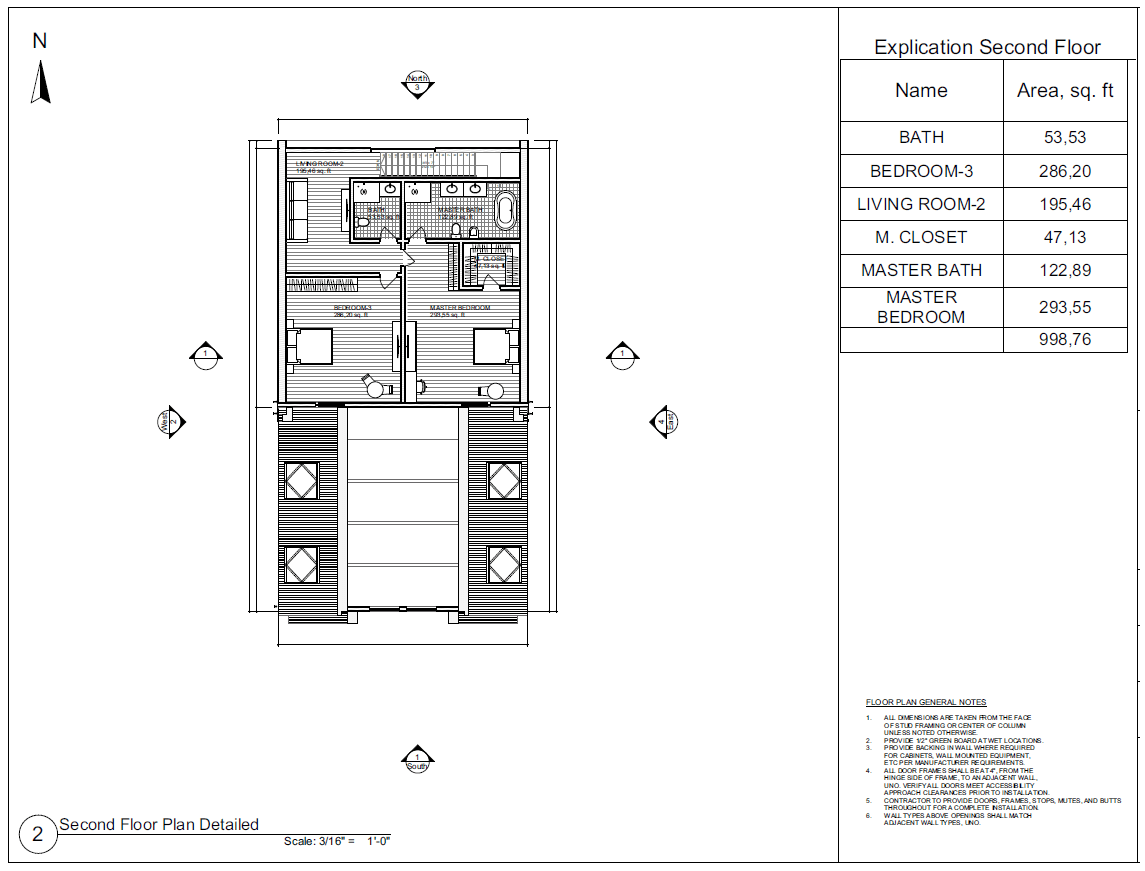

🔹Second Floor
■ Primary Bedroom Suite – 16′ x 18′
■ Includes Walk-In Closet – 6′ x 10′
■ Primary Bathroom – 10′ x 14′
■ Bedroom 2 – 12′ x 13′
■ Bedroom 3 – 12′ x 12′
■ Bedroom 4 – 11′ x 12′
■ Shared Full Bathroom – 6′ x 10′
■ Hallway / Landing Area – ~80–100 ft²
■ Linen Closet – 3′ x 5′
■ Staircase Opening / Railings – 6′ x 10′

🎯 Instant PDF Download – Start Your Project Today!

Due to variations in different States and local building departments, these plans are not intended for immediate permitting but can be adjusted by your builder or designer.

We encourage you to subscribe to our store and add it to your favorites.
Since we strive to add at least one new project per week regularly.
Stay up to date with our latest offers.

After purchasing the plan, you will receive a PDF file from Etsy.
The plan is provided for personal use only and is copyrighted by BestHomesPlans.
Commercial use or redistribution is strictly prohibited.

💌 Have questions? Feel free to reach out!

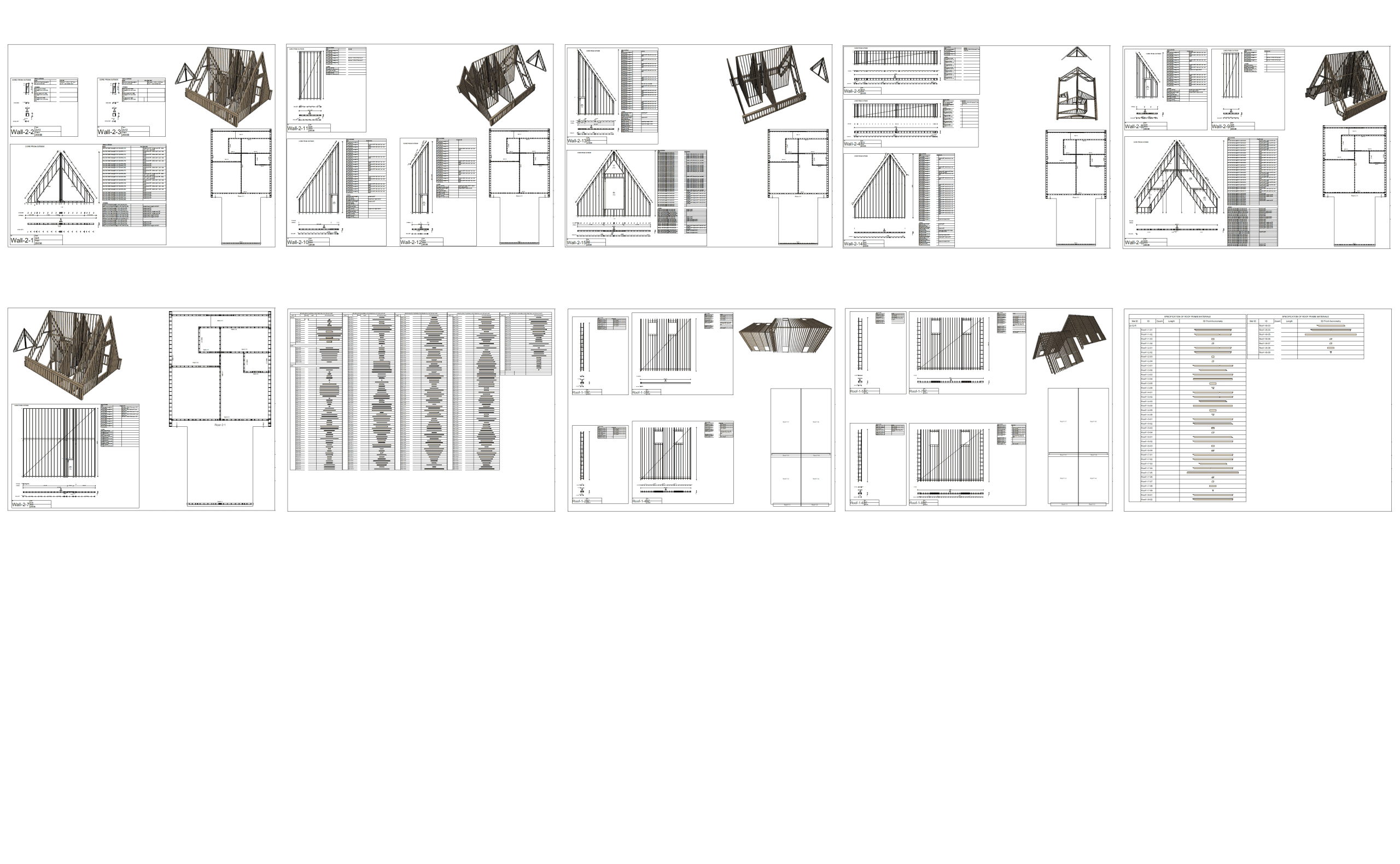

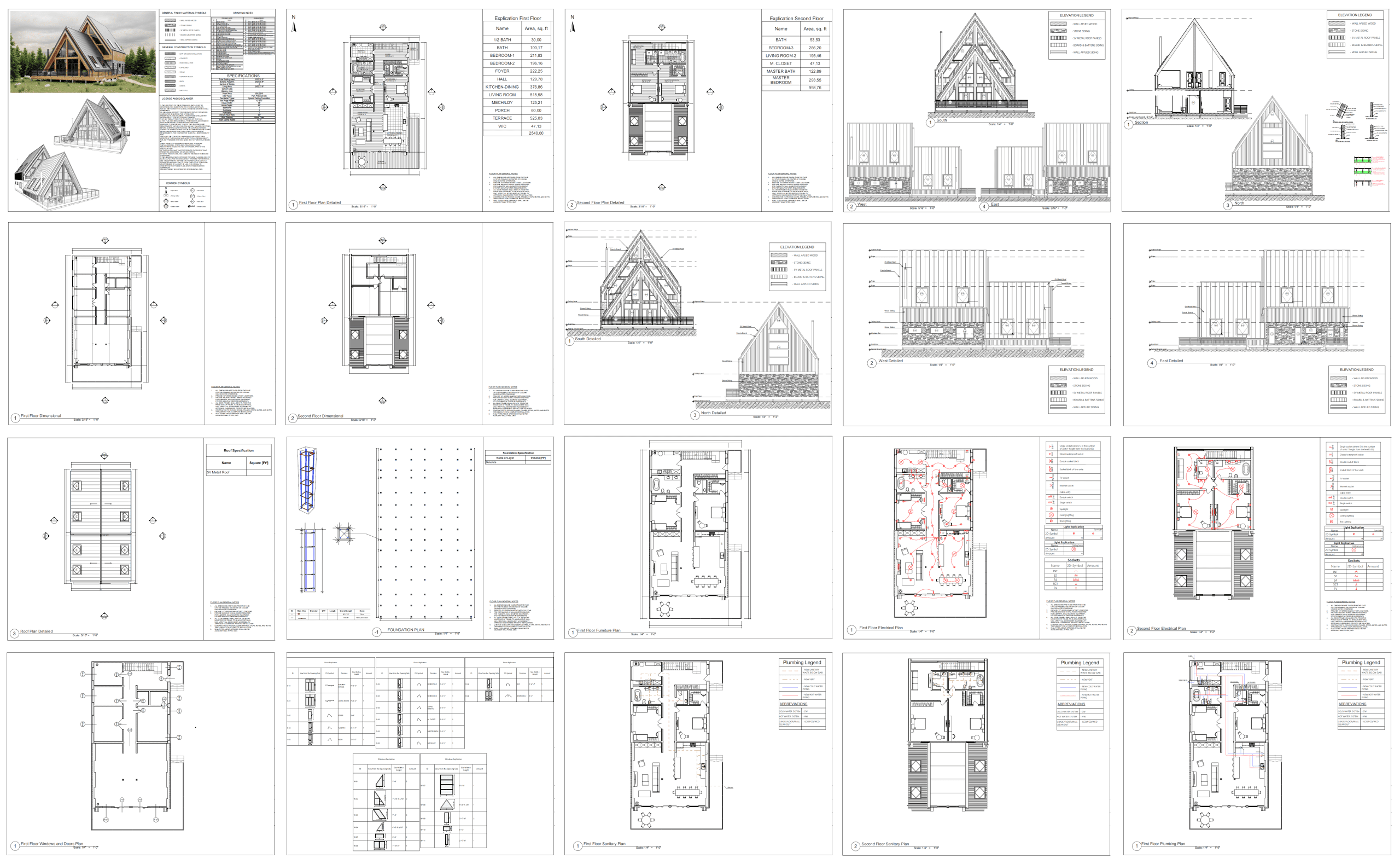

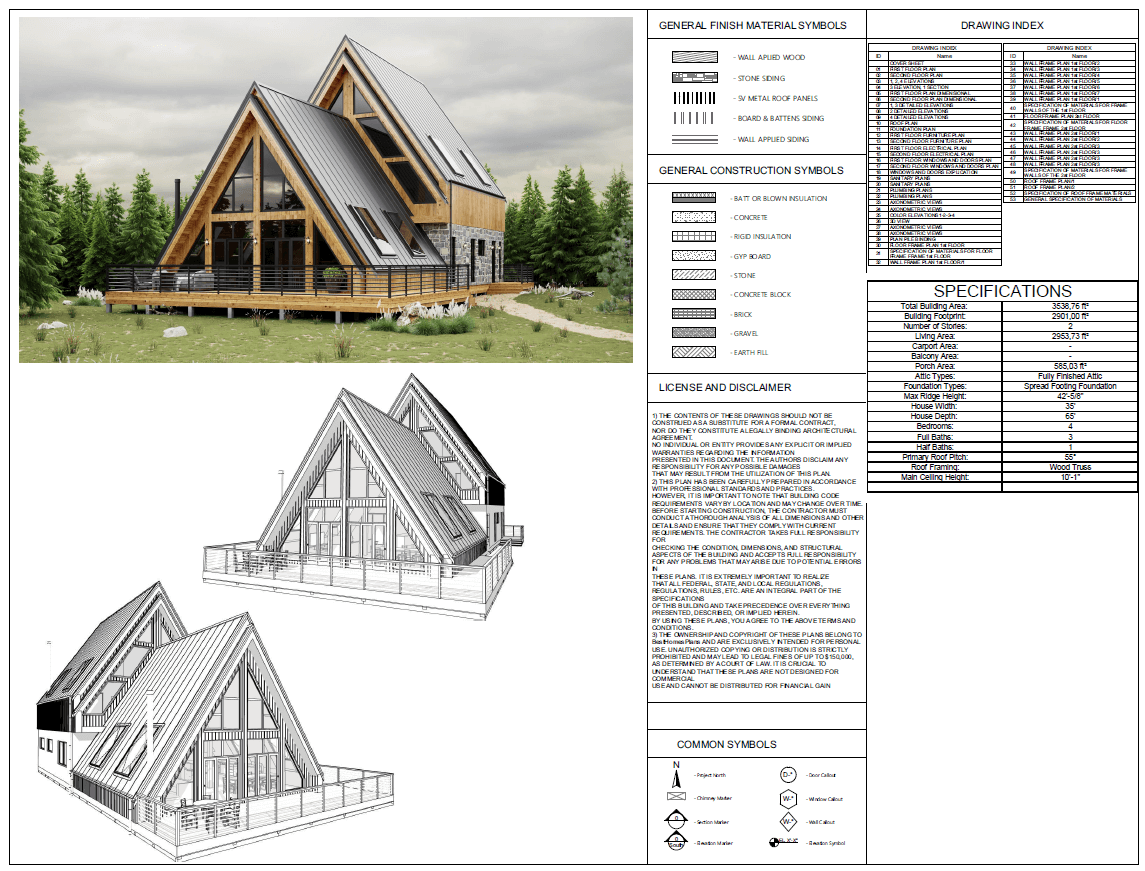

Fully dimensioned Floor Plans

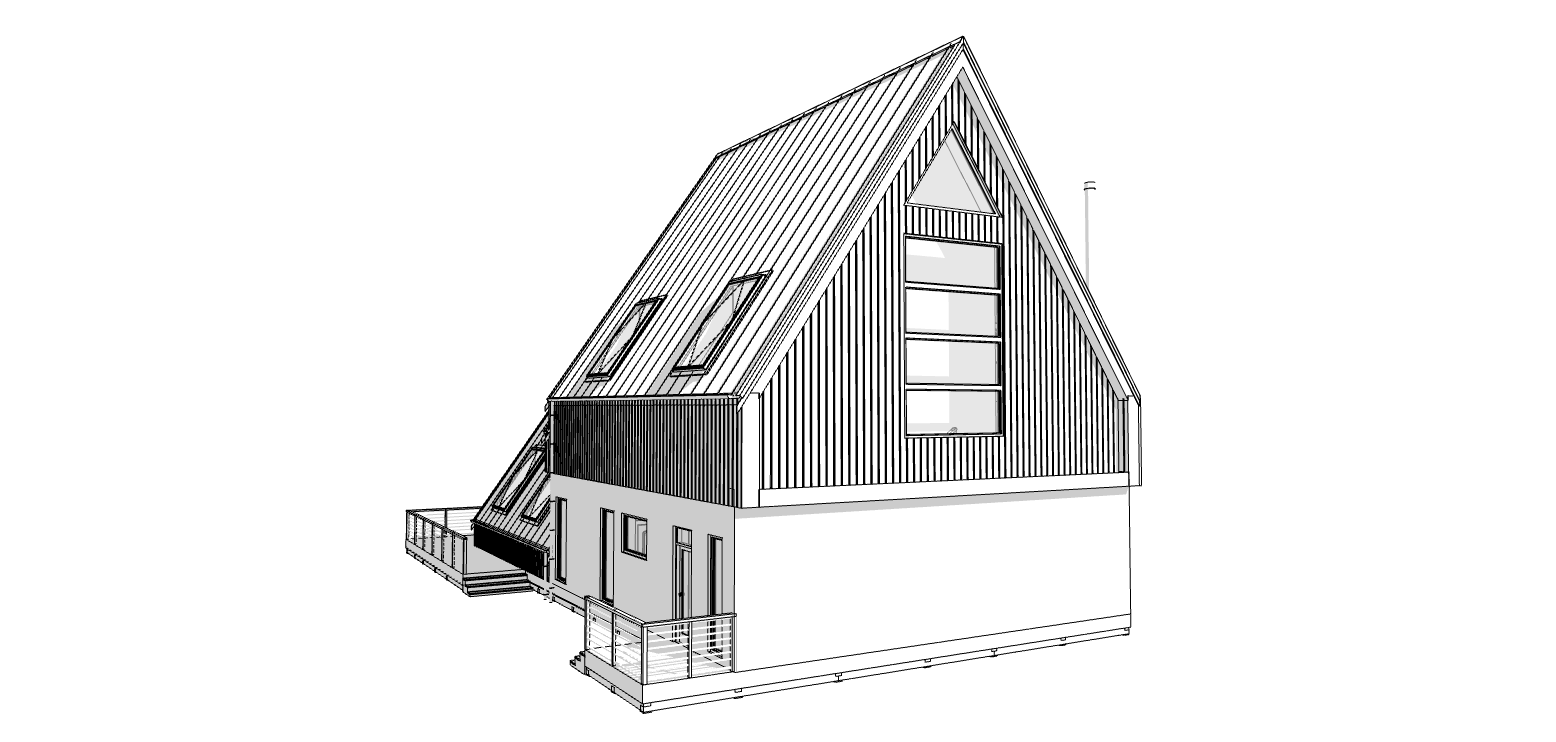

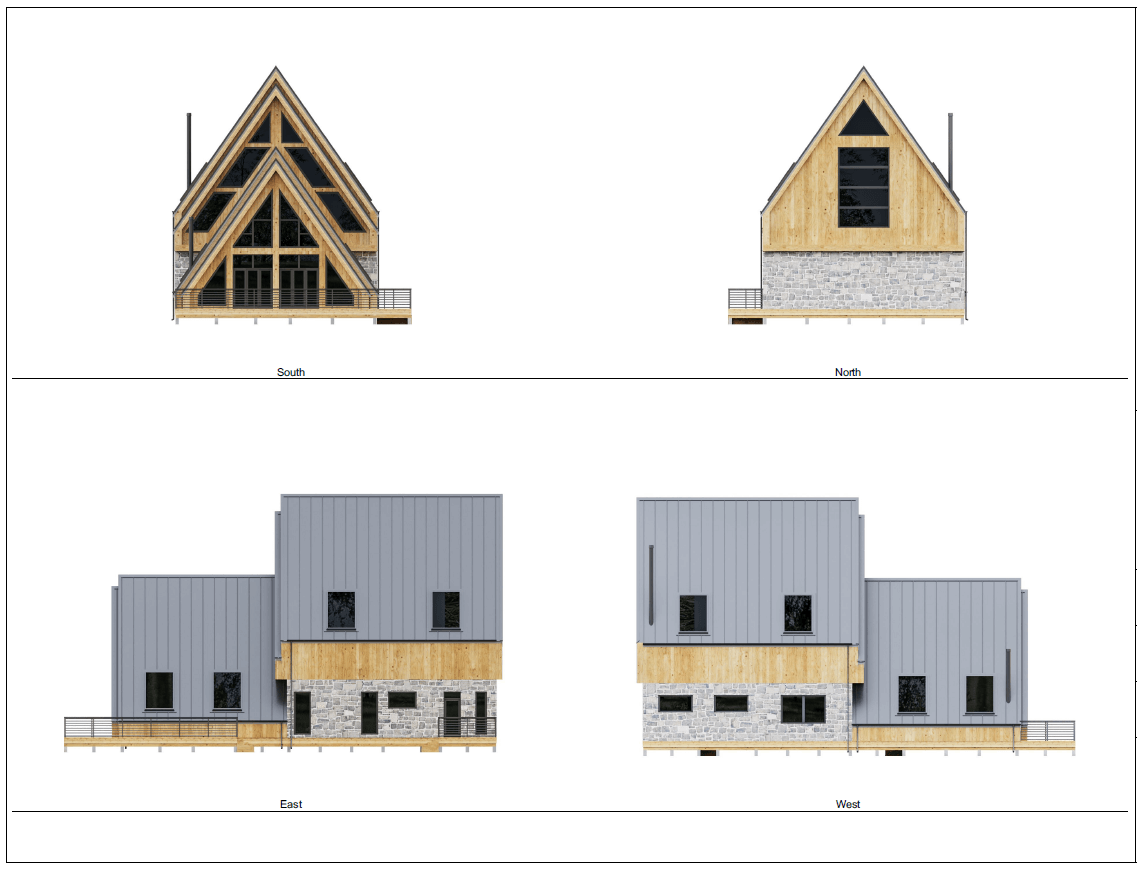

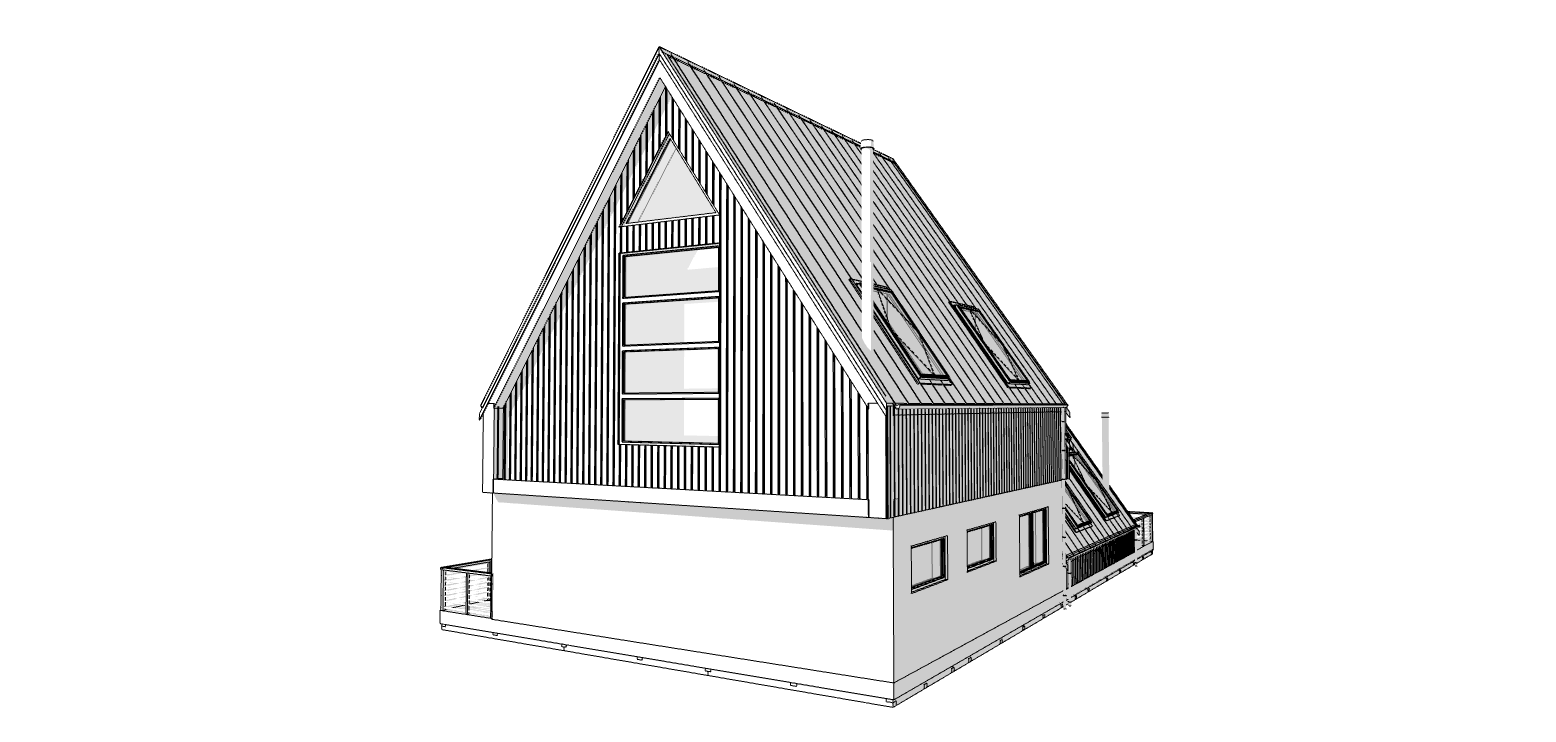

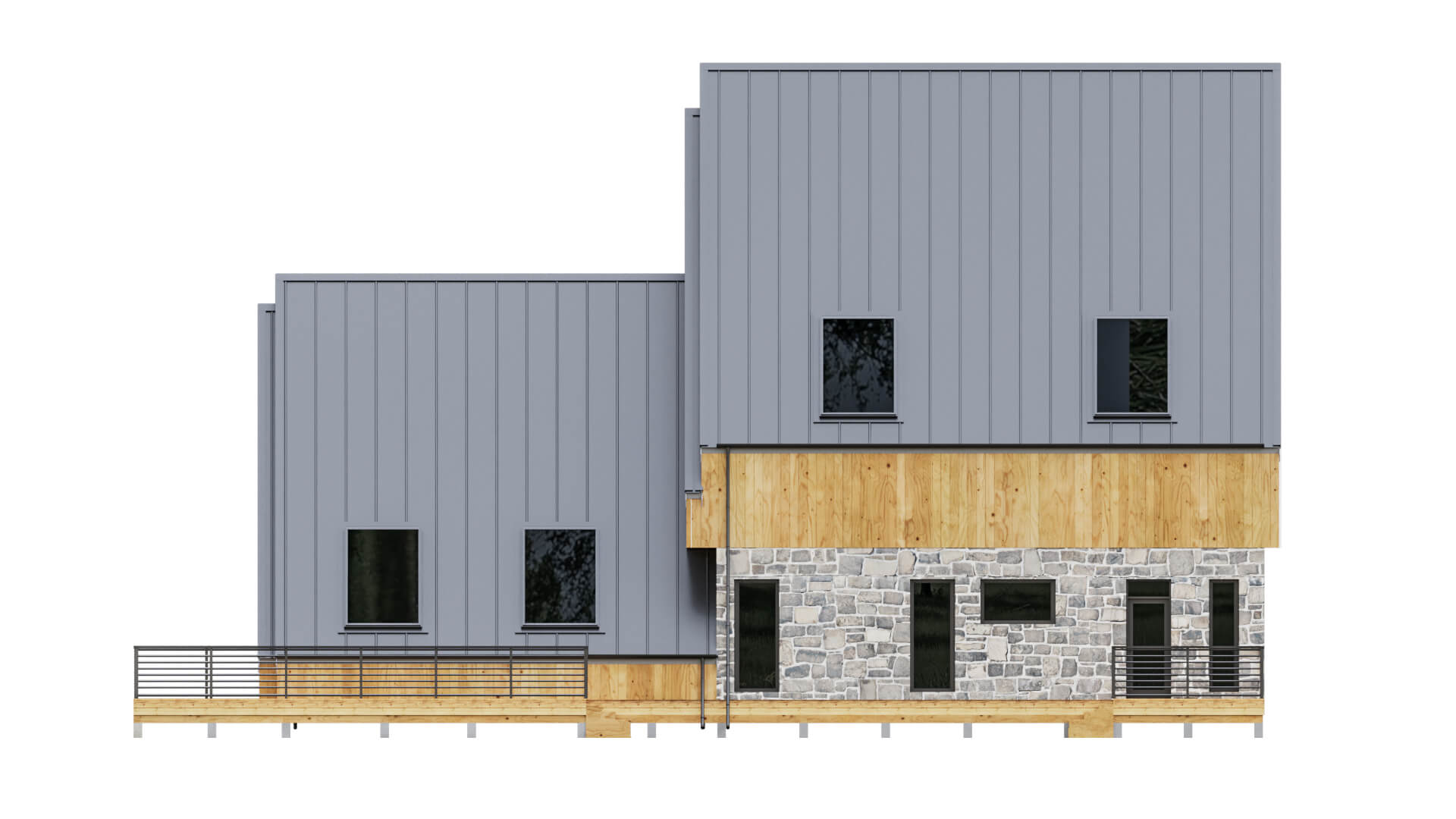

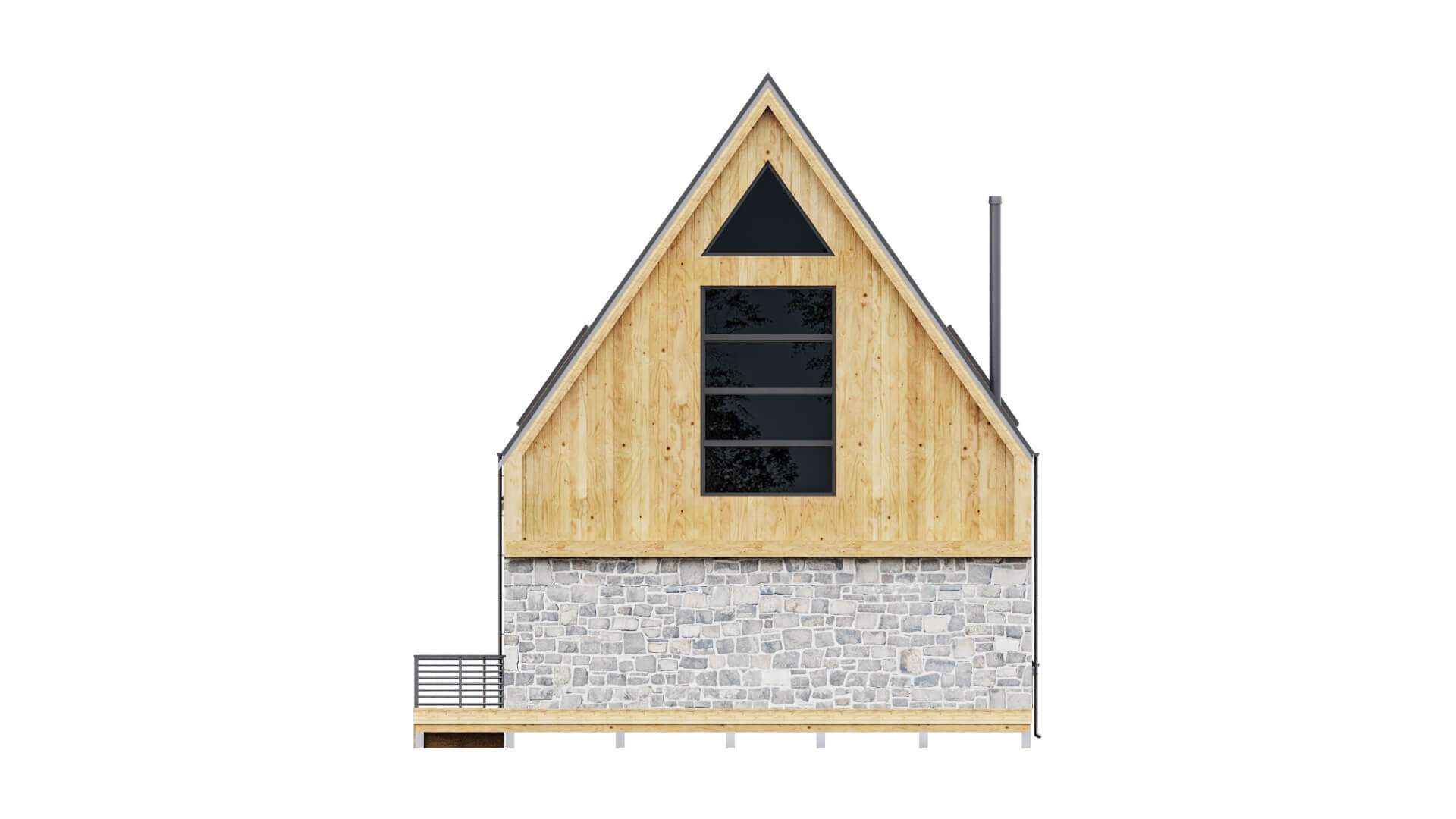

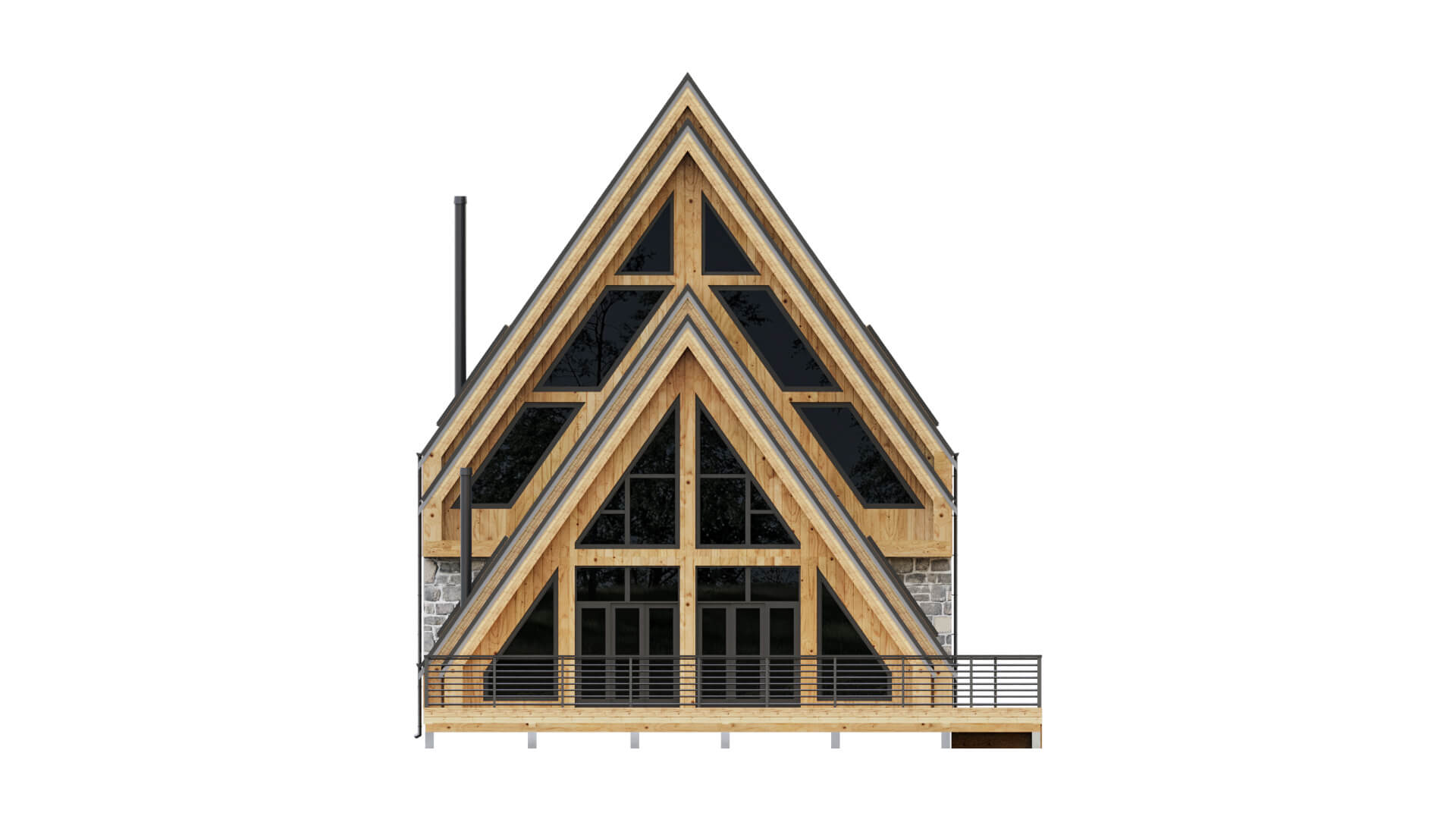

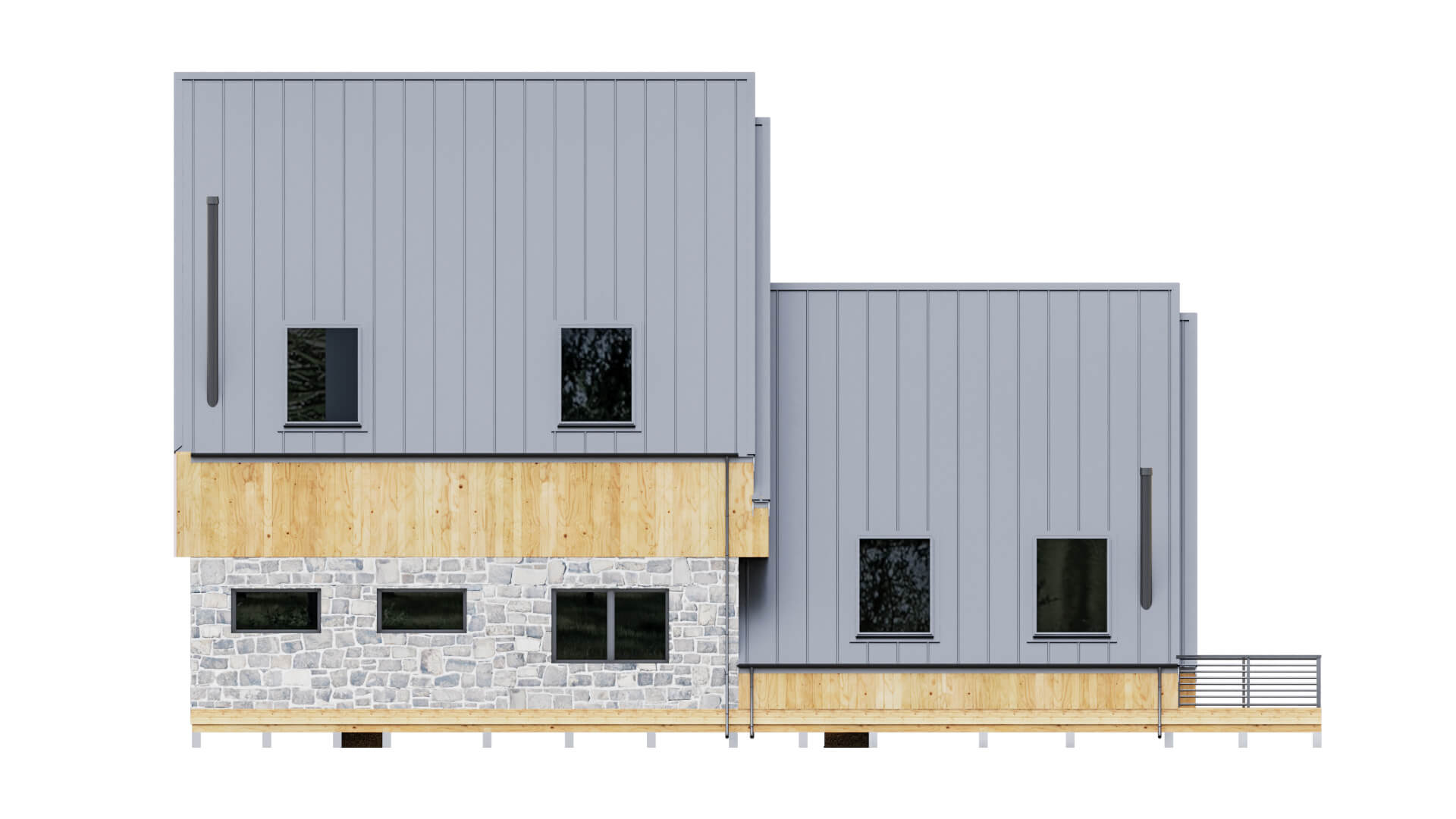

Elevations Plans (front, back, and side views)

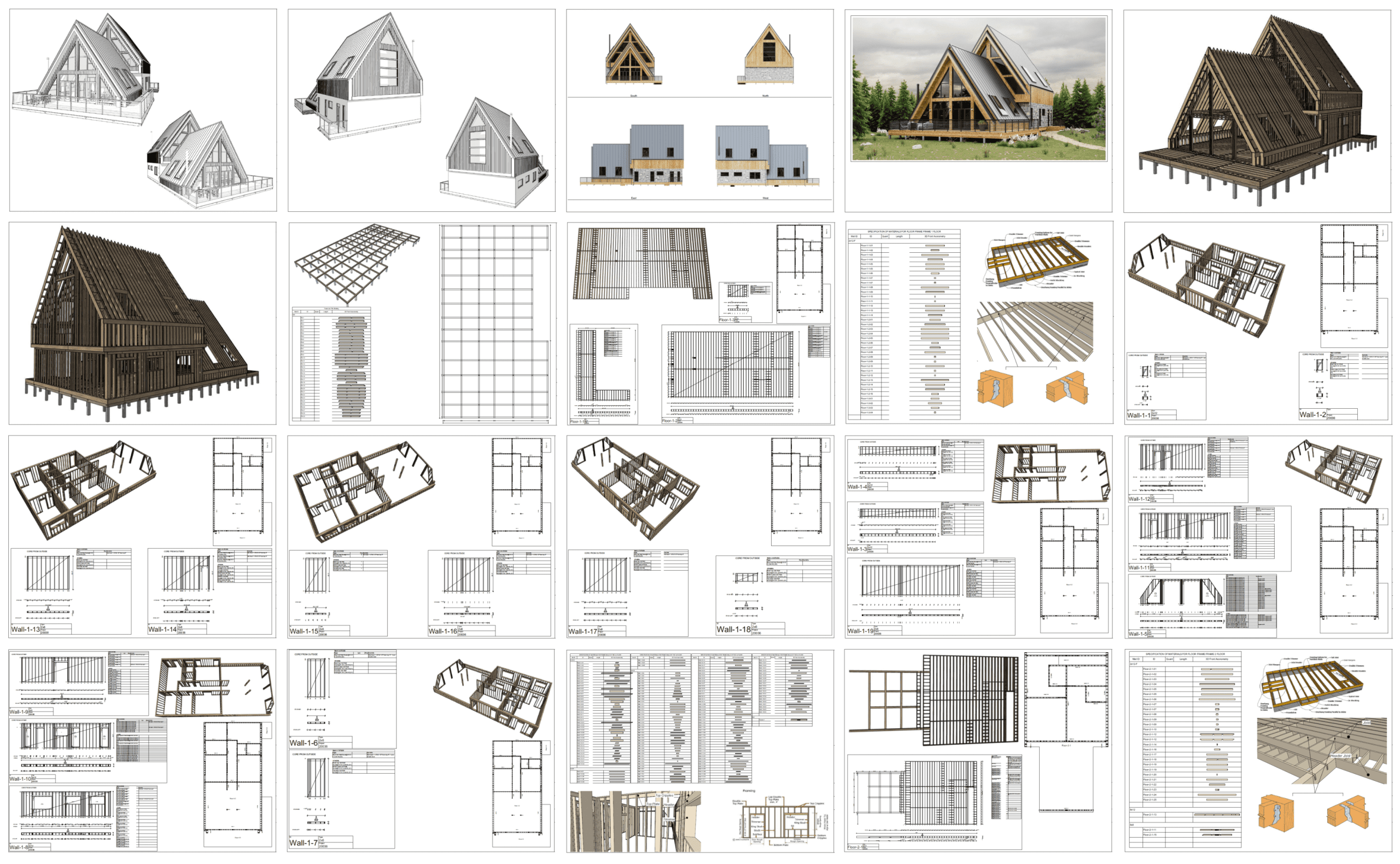

Roof Plan with slope and framing
Electrical & Plumbing Plans
Foundation & Roofing Details
Door & Window Schedule
Notes for porches, attic space, and framing
All drawings are annotated & builder-ready
