16’x20’ Pavilion & Pergola Plans – DIY Gazebo Blueprints, Backyard Shade Structure, Step-by-Step Woodworking Guide
Plan
click for gallery
Plan Pricing from $35
Get Today's Discount Promo Code
Total price: 0.00 $
| Width: | 16' |
|---|---|
| Depth: | 20' |
| sq ft: | 320 |
| Units: | Imperial Units |
| House style: | DIY Plans, Modern, New Plans |
| Plan Type: | Pavilion |
16’x20’ DIY Pergola Pavilion Plans – Step-by-Step DIY Construction Guide, Outdoor Shelter, Woodworking Blueprint, Instant PDF Download.
Build your own 16’x20’ pergola pavilion with these detailed DIY woodworking plans! Whether you’re creating a cozy outdoor retreat, a backyard entertainment space, or a sturdy shelter for your patio, this step-by-step guide makes it easy to construct a professional-grade structure with clear instructions and precise measurements.
🌟 Build Features:
■ Build Size: 16’x20’
■ Overall Height: 10’-2″
■ Foundation: Reinforced concrete for maximum stability
■ Roof Truss: 6×12 beams spaced 48″ O.C.
■ Roof Pitch: 0° for a modern, flat-roof aesthetic
■ Support Pillars: Heavy-duty 8×8 posts for superior strength
■ Beams: Sturdy 8×8 wood construction
The plan is provided for personal use only and is copyrighted by BestHomesPlans.
Commercial use or redistribution is strictly prohibited.
Thank you and Good Luck)

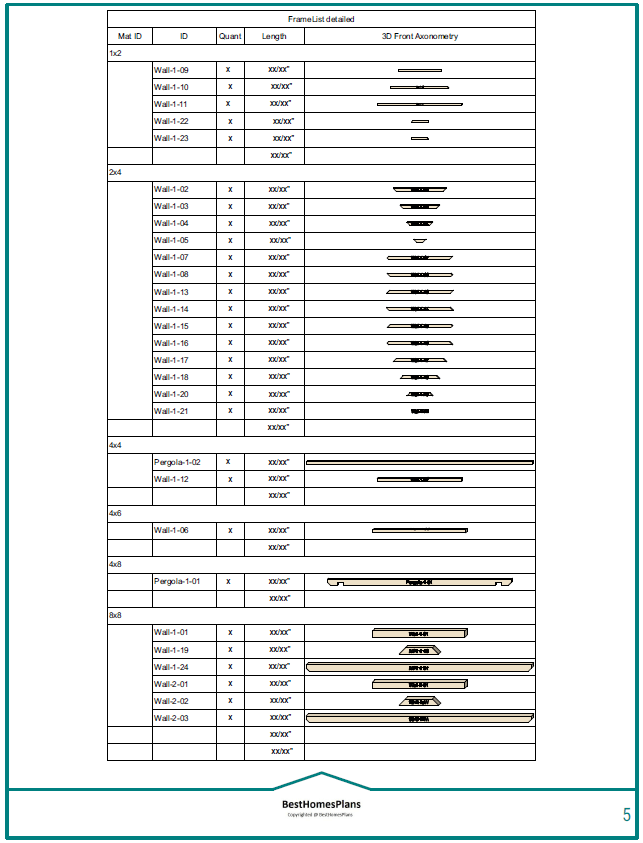

Material & Cut List
Tools List
Full 2D Plans
Step-by-Step Instructions
3D Diagrams

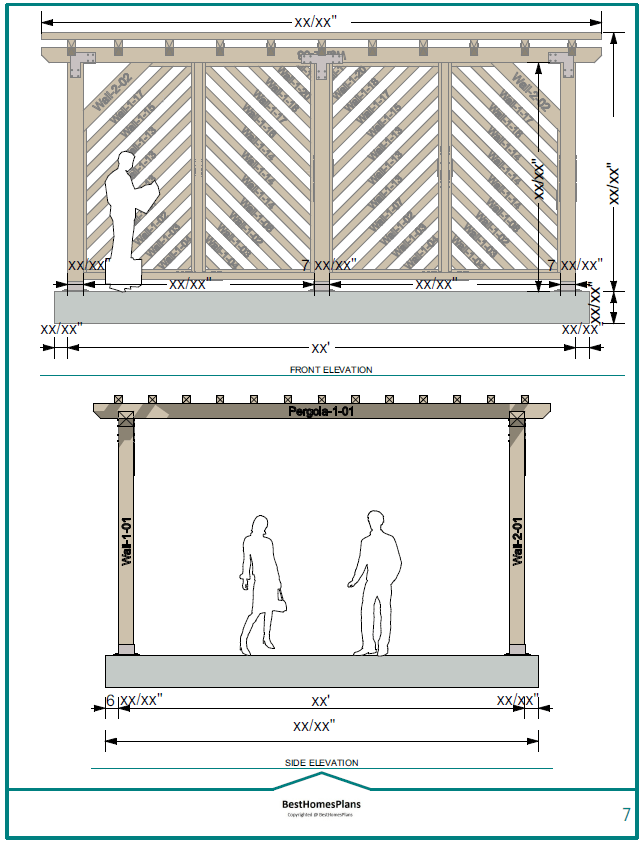

Detailed Drawings
Helpful Tips
- Read About Plan
- Ask a Question
- Tell a Friend
- Photo Gallery

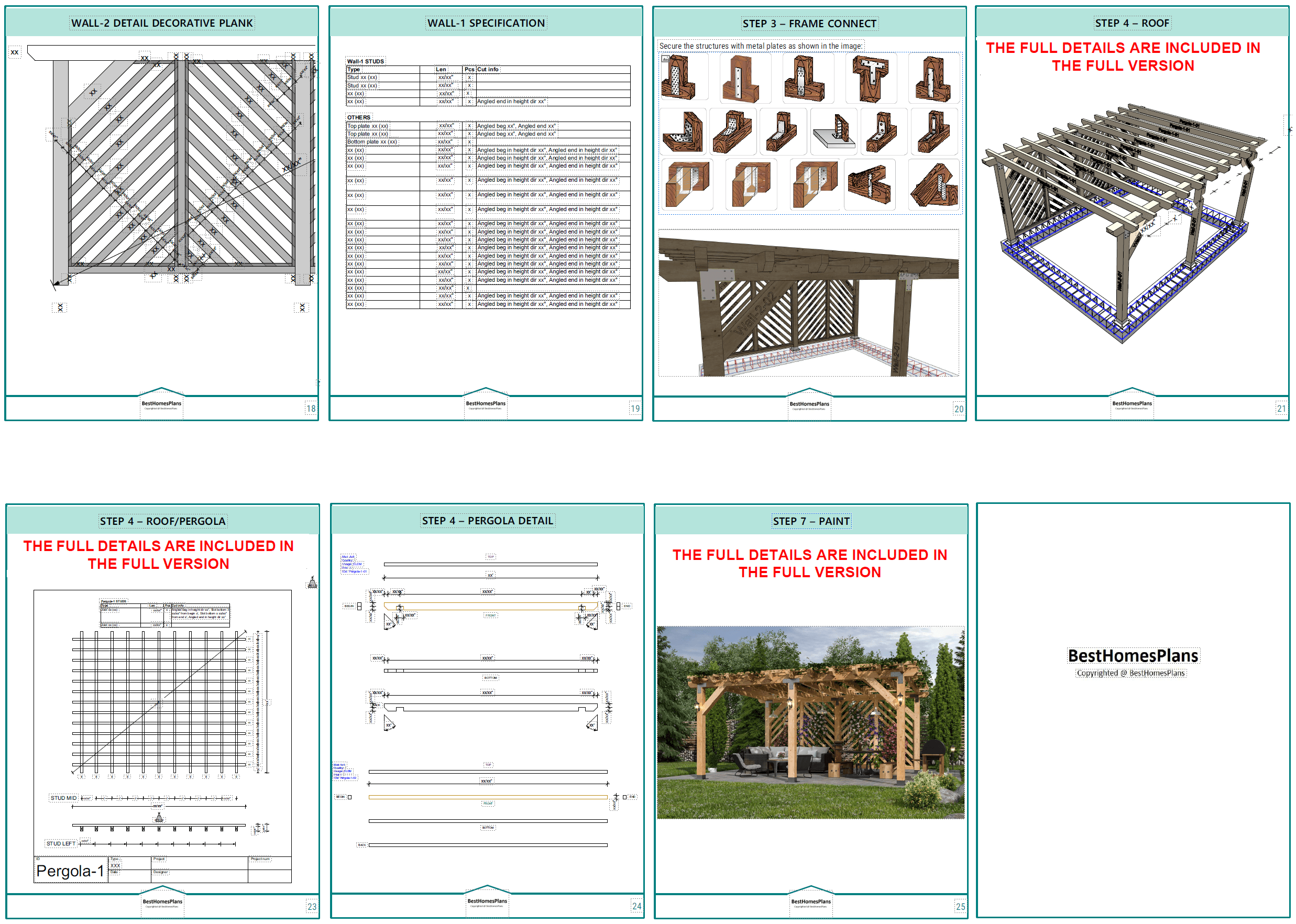

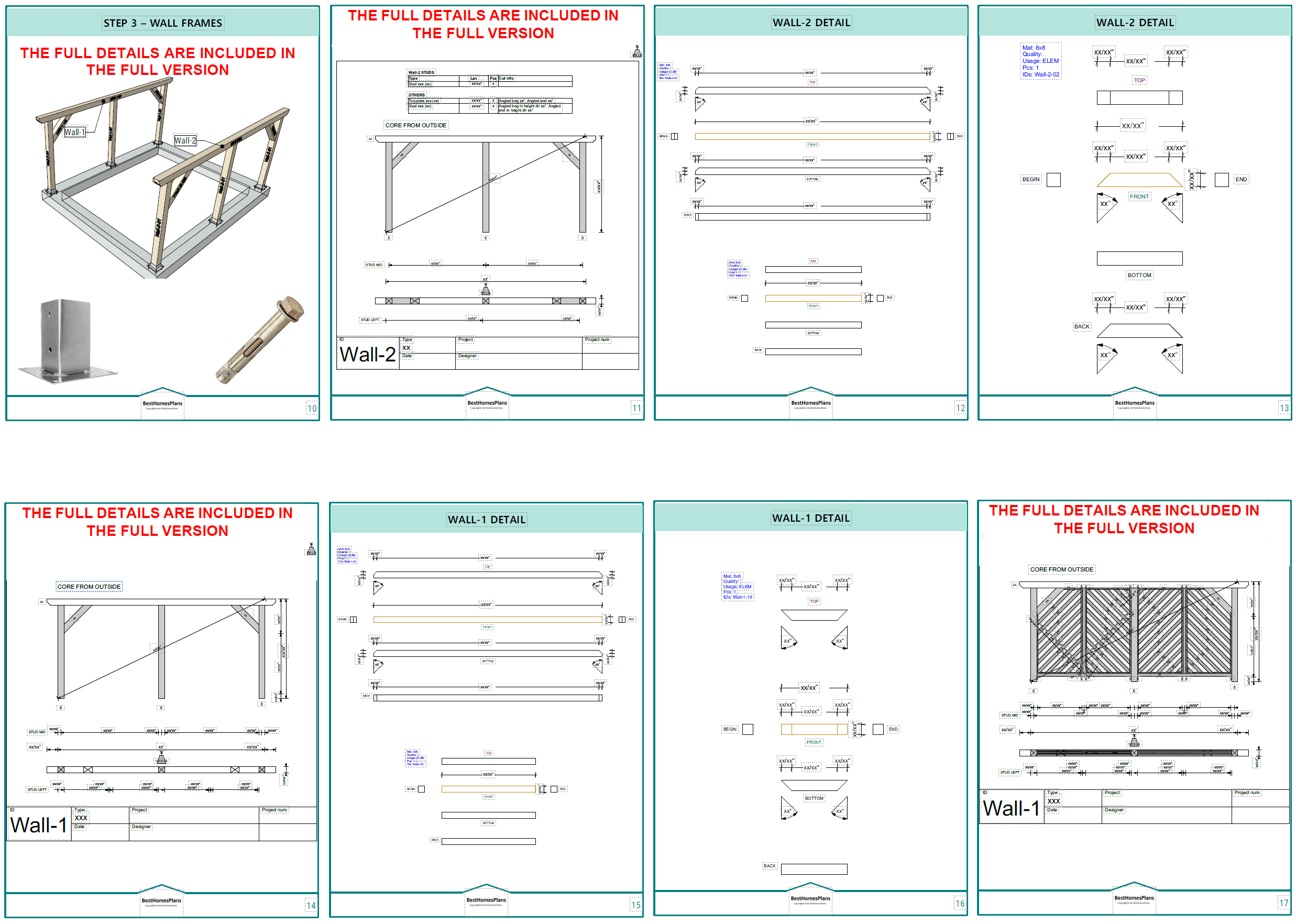

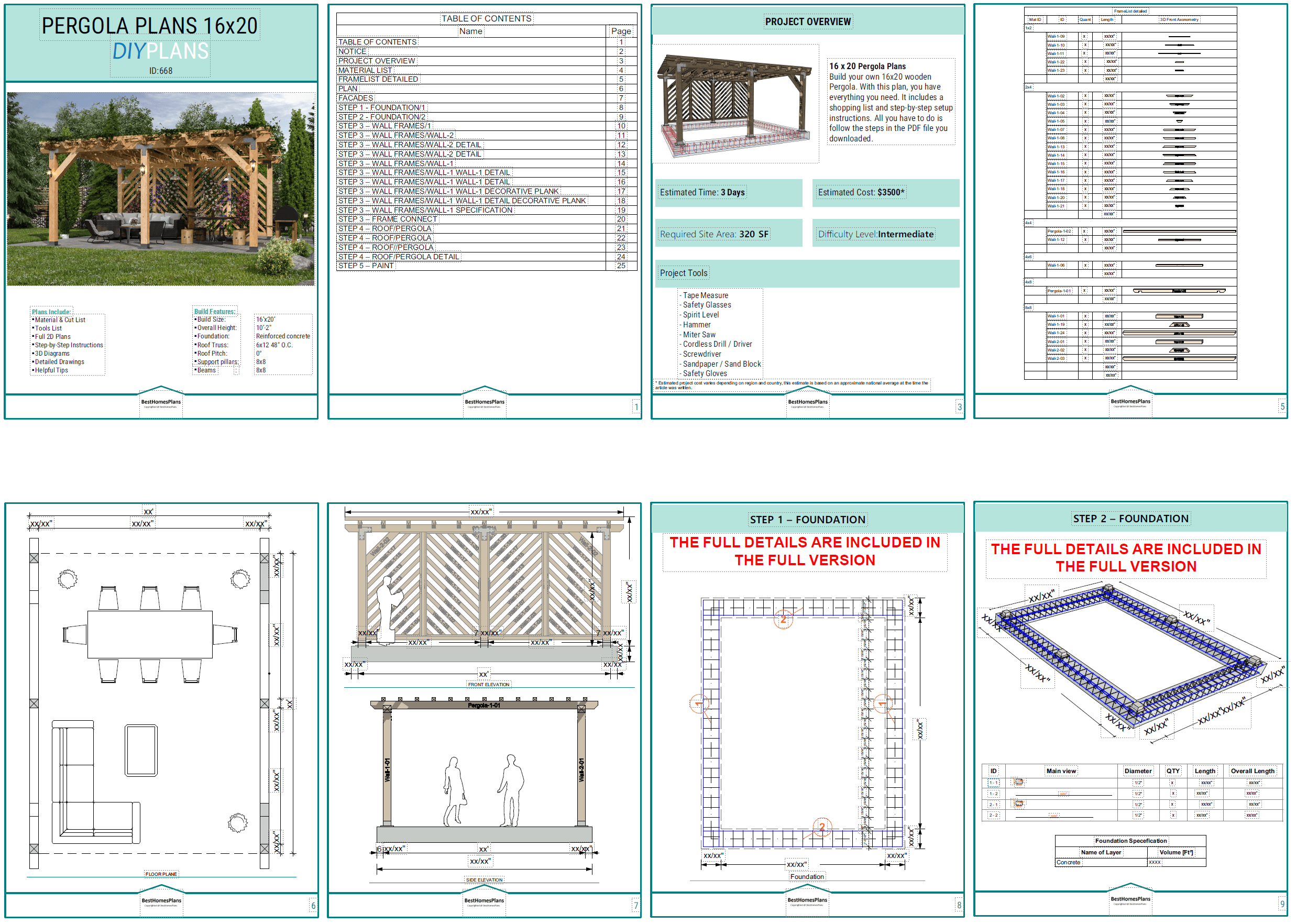

Photo Gallery of Pergola Plans 668
