House Plan 10023

Total price: 0.00 $

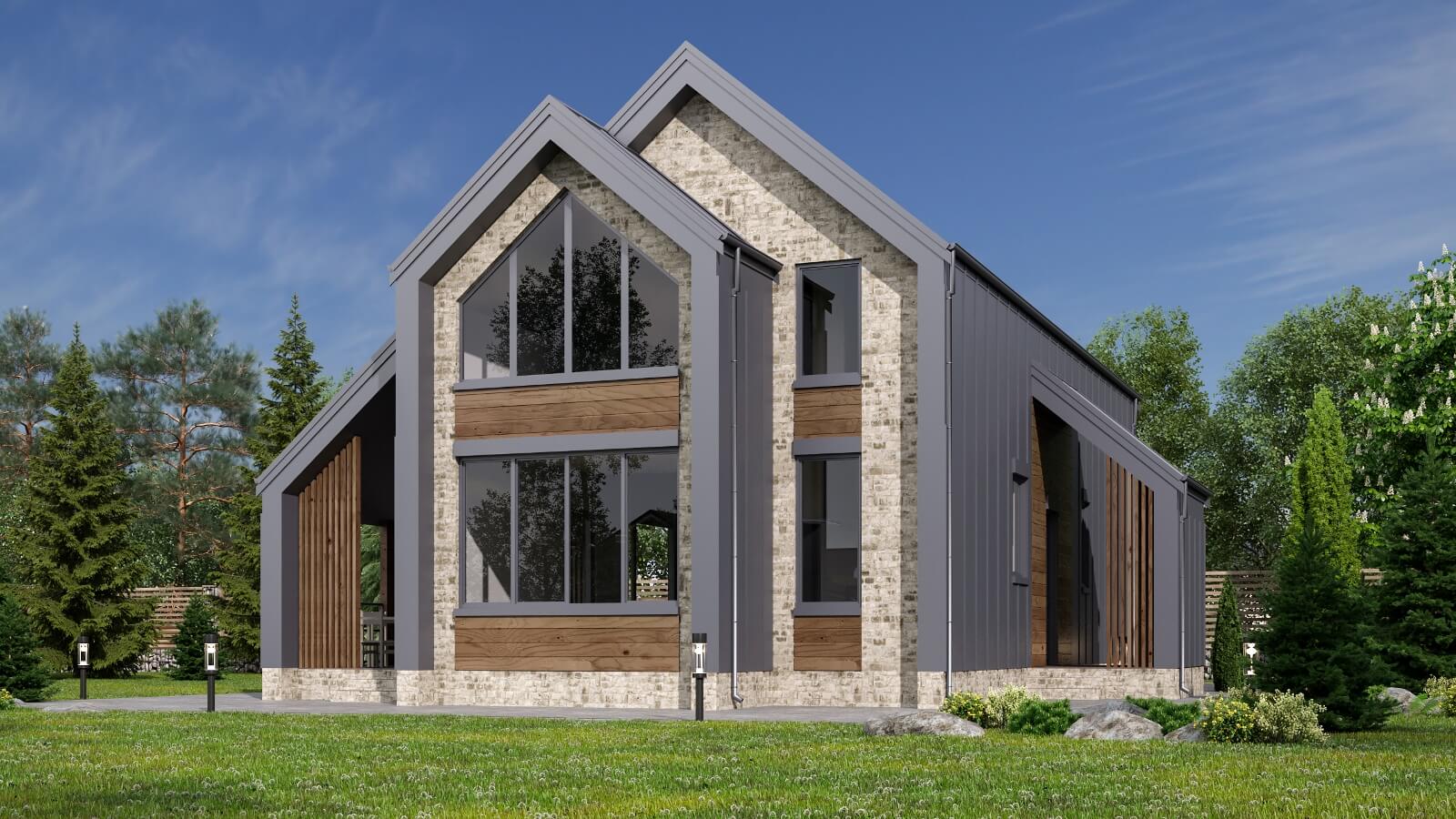

Discover the perfect blend of rural charm and modern convenience with our 4-bedroom barnhouse Plan.

Designed for those who dream of a spacious, yet cozy home, this plan features a total building area of 2,217 square feet, thoughtfully divided across two well-planned stories.

What This Barnhouse Plan Offers:

• Total Building Area of 2,217 sq ft: Ample space for a comfortable lifestyle.
• Efficient Building Footprint: Spanning 1,420 sq ft, it ensures a perfect balance between the house and outdoor space.
• Two-Level Design: This two-story layout provides a distinct separation between living and private areas, perfect for families.
• Generous Living Area: The living space covers 2,009 sq ft, designed for both day-to-day life and entertaining.
• Relaxing Porch Area: A 287 sq ft porch adds a touch of outdoor living, ideal for morning coffees or evening relaxation.
• Optimal Dimensions: The house measures a width of 39′-9 1/4″ and a depth of 52′-7 3/4″, creating a harmonious and well-proportioned structure.
• Bedrooms and Bathrooms: With 4 bedrooms and 3 full baths, this plan caters comfortably to family members and guests.
• Detailed and Clear Design: Our plans are created precisely and clearly, making them builder-friendly and easy to follow.
• Ideal for Various Landscapes: Whether in the countryside or a suburban setting, this Barnhouse plan fits beautifully in diverse environments.

What is included:

• Materials List
• Floor Plans

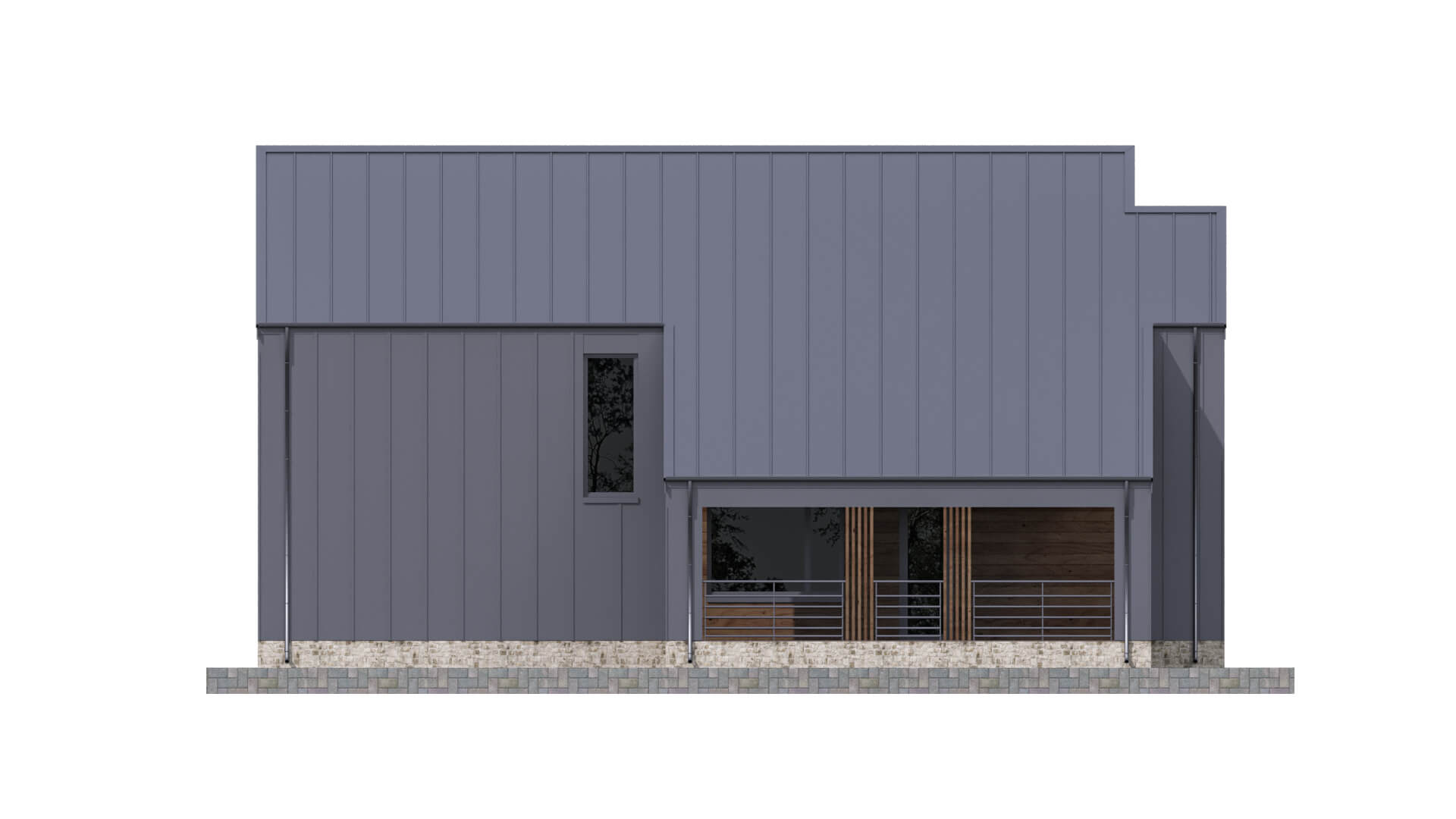

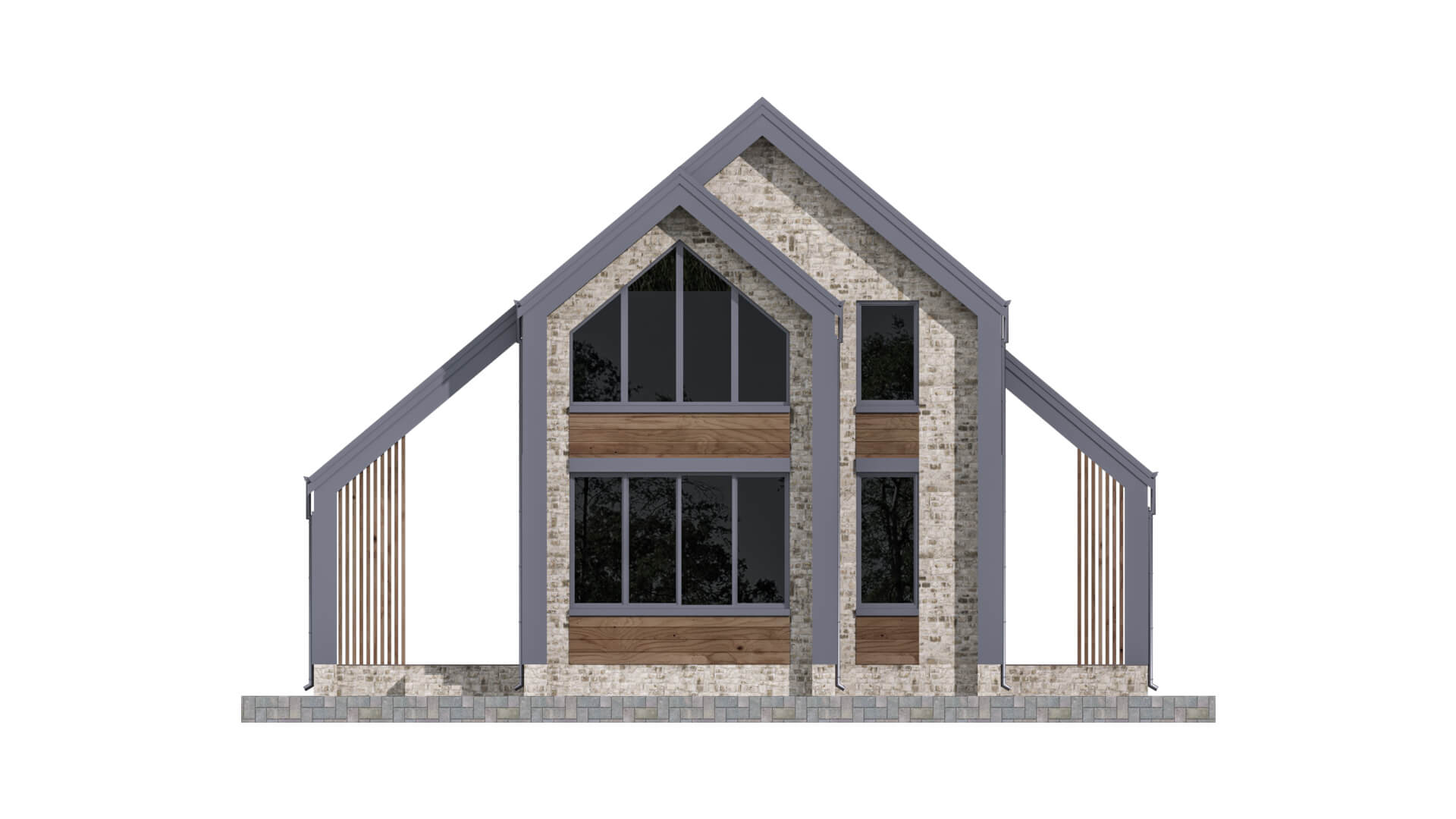

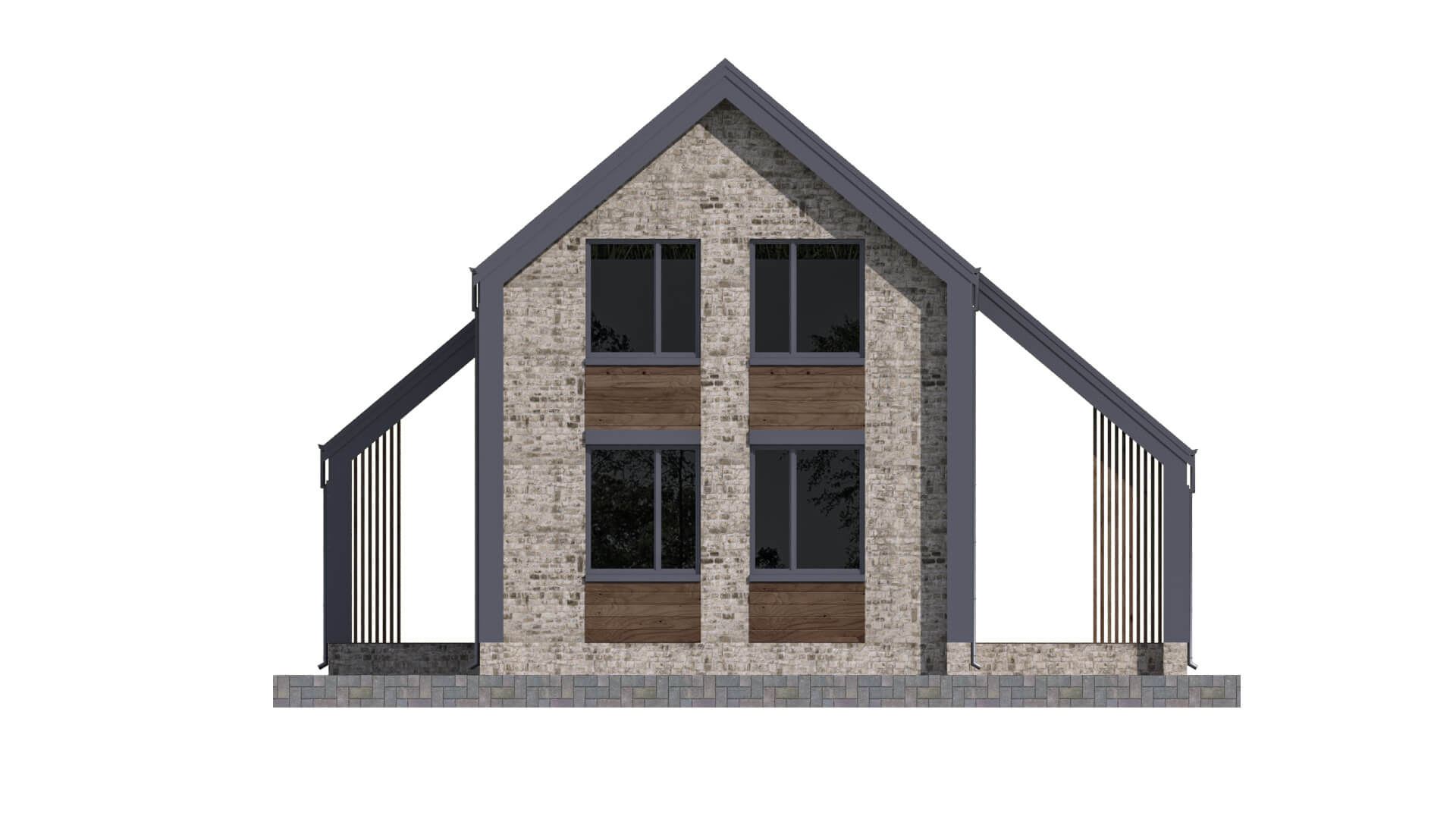

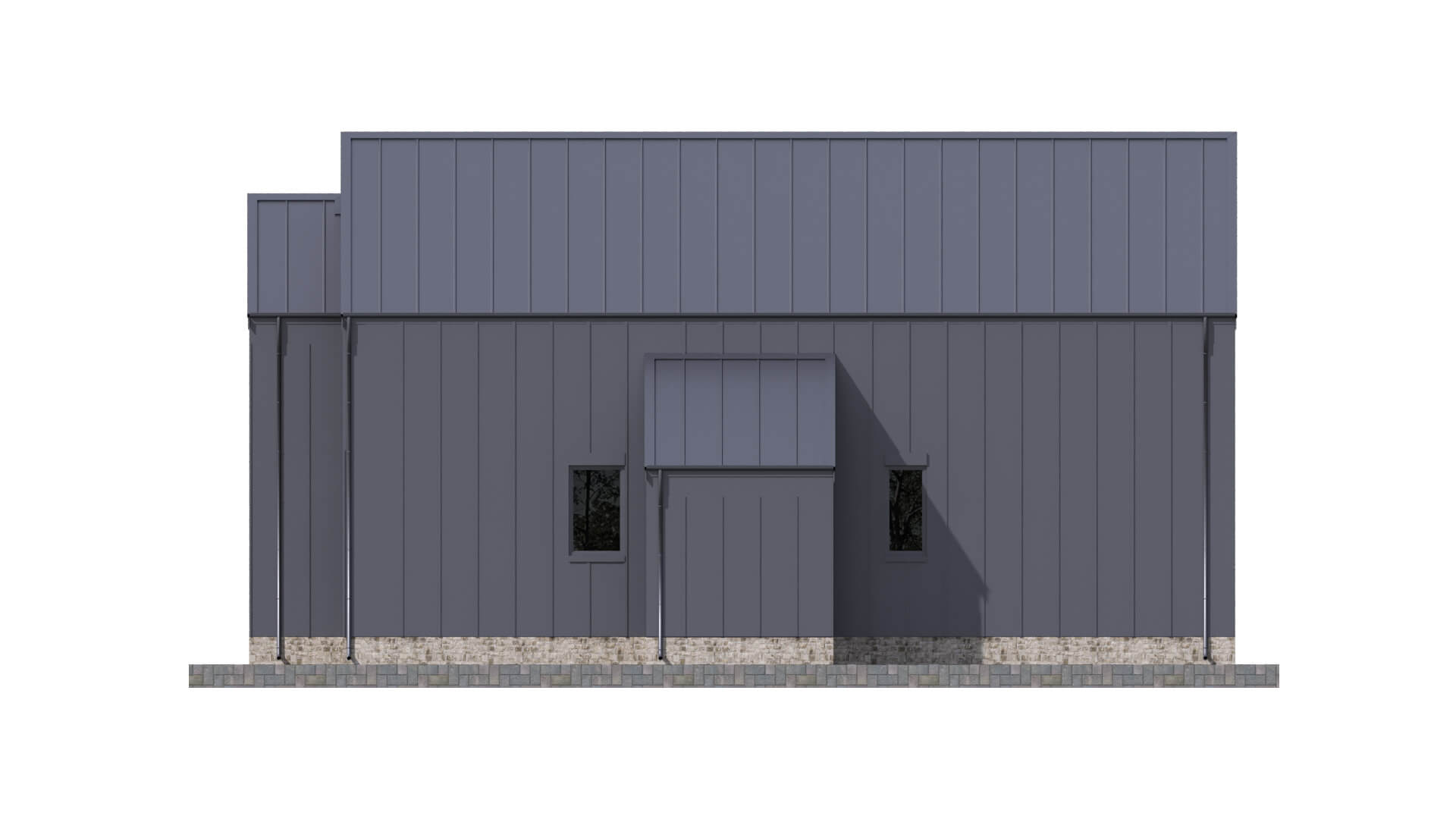

• Elevations Plans
• Roof Plan
• Electrical Plan
• Plumbing Plan

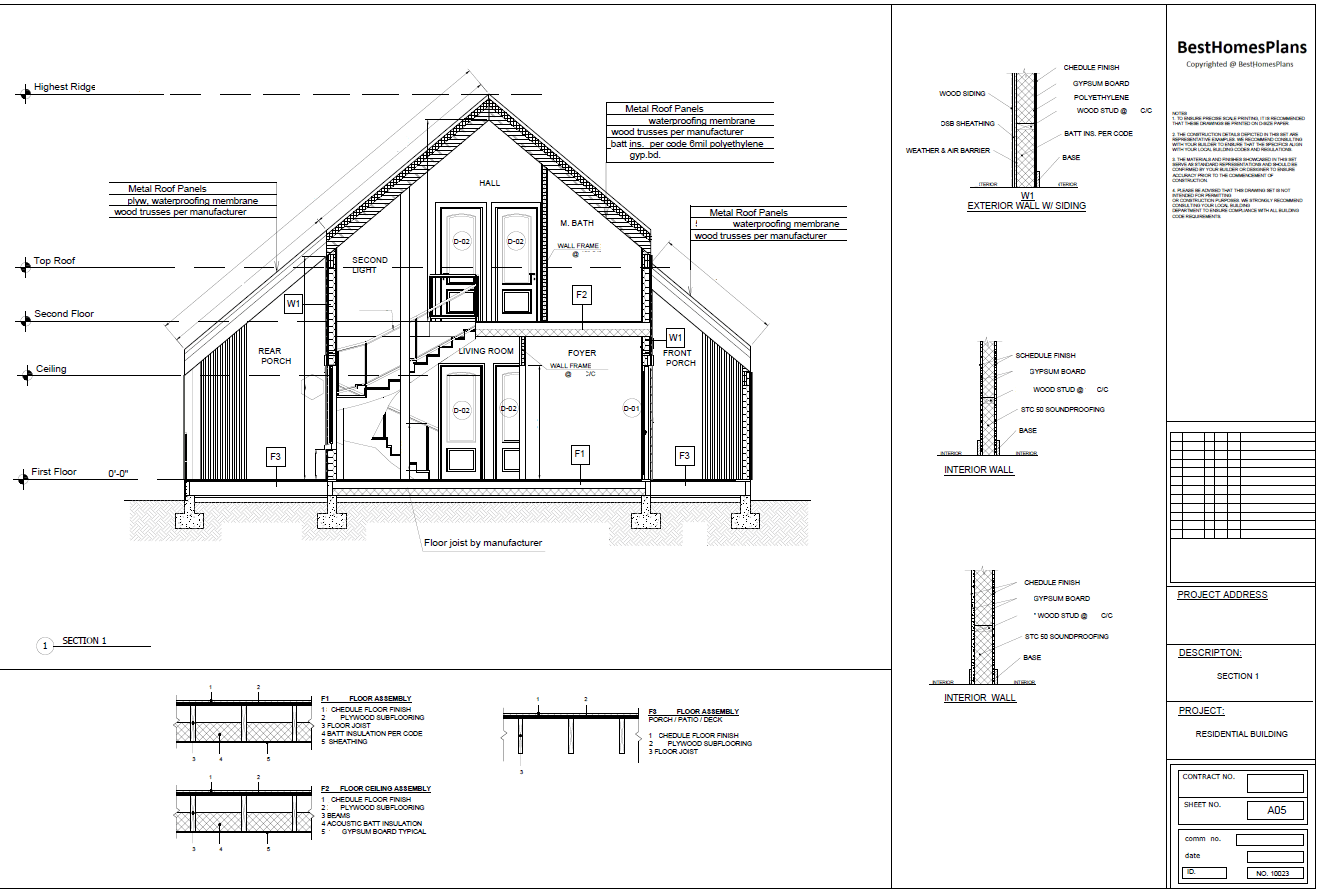

• Foundation/Roofing Details
• Door/Window Schedule
• Fully dimensioned and annotated
• Porches

SPECIFICATIONS:

• Total Building Area: 2 217 sq ft
• Building Footprint: 1 420 sq ft
• Number of Stories: 2
• Living Area: 2 009 sq ft
• Porch Area: 287 sq ft
• Foundation Types: wood joist
• Exterior Walls: 2×6
• Max Ridge Height: 27′-0″
• House Width: 39′-9 1/4 ”
• House Depth: 52′-7 3/4 ”
• Bedrooms: 4
• Full Baths: 3
• Primary Roof Pitch: 12:10
• Roof Framing: Wood Truss
• Main Ceiling Height: 10′-0″/20′-1″

Due to variations in different States and local building departments,

these plans are not intended for immediate permitting but can be adjusted by your builder or designer if needed.

The plan is provided for personal use only and is copyrighted by BestHomesPlans.

Commercial use or redistribution is strictly prohibited.

Thank you, and Good Luck)

Materials List (For reference only)

Floor Plans

Elevations Plans

Roof Plan

Electrical Plan

Plumbing Plan

Foundation/Roofing Details

Door/Window Schedule

Fully dimensioned and annotated

Porches
