House Plan 20024

Total price: 0.00 $

Charming 2-story backyard cabin Plans – Ideal for Cozy Living.

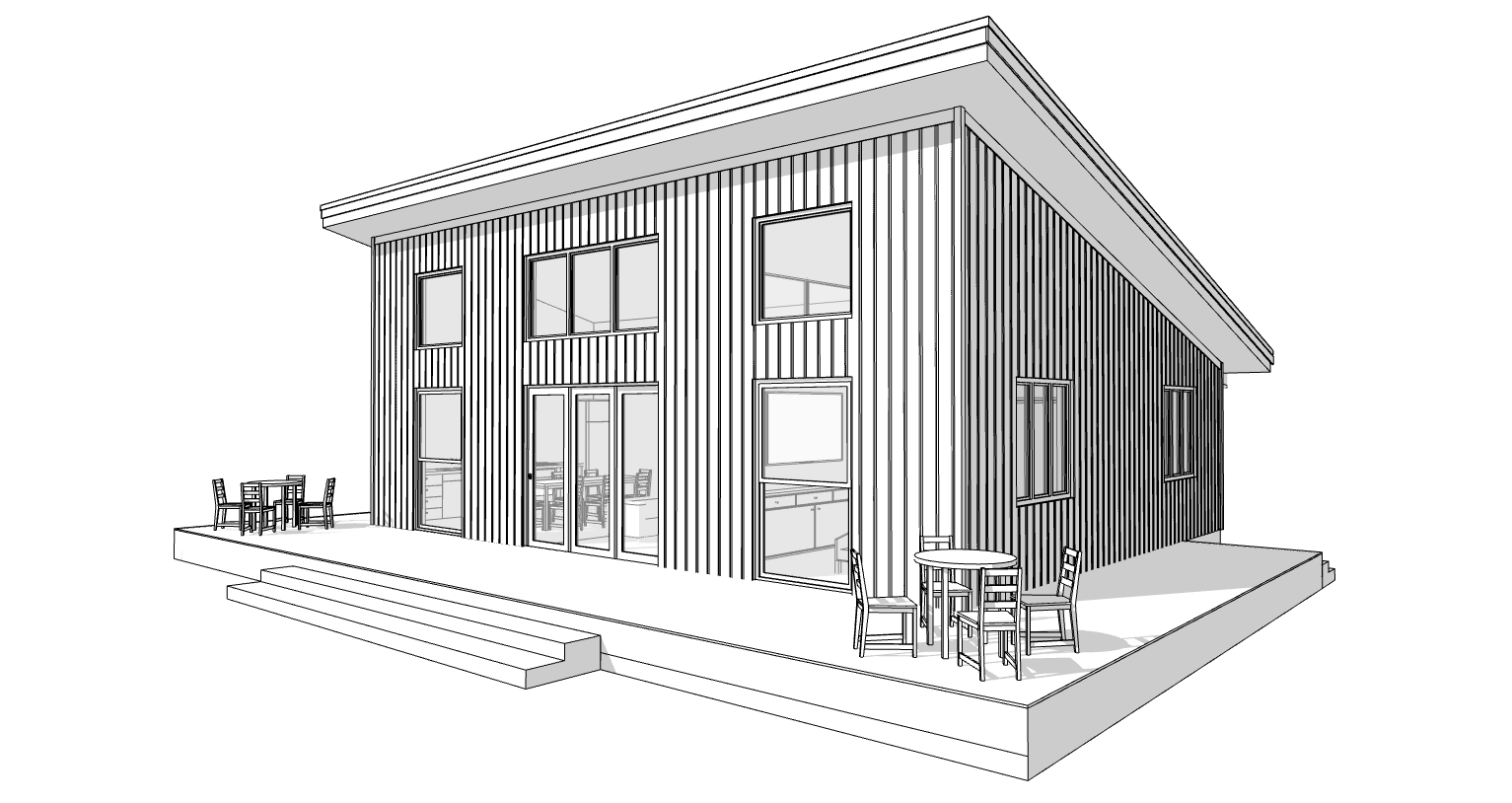

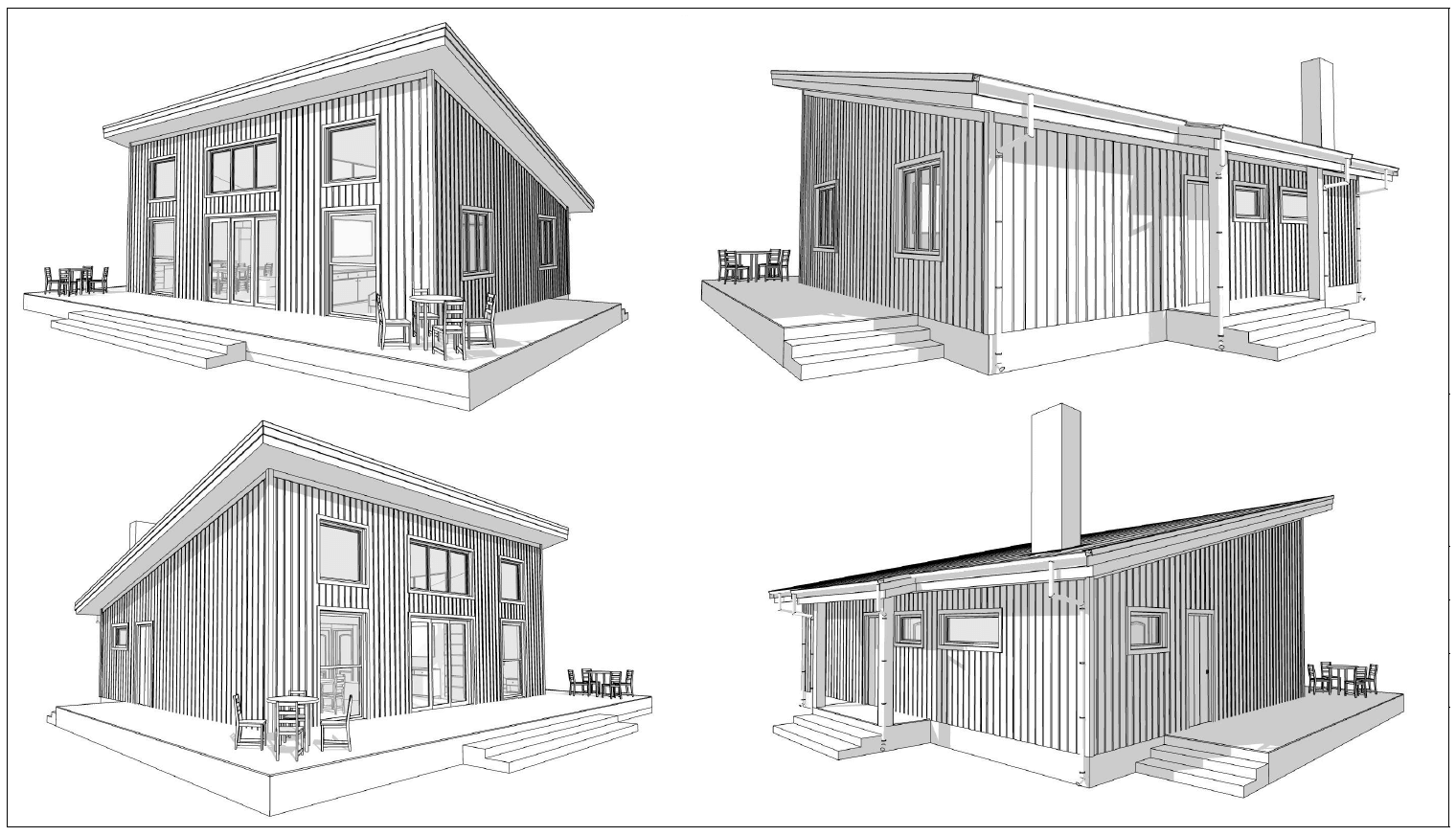

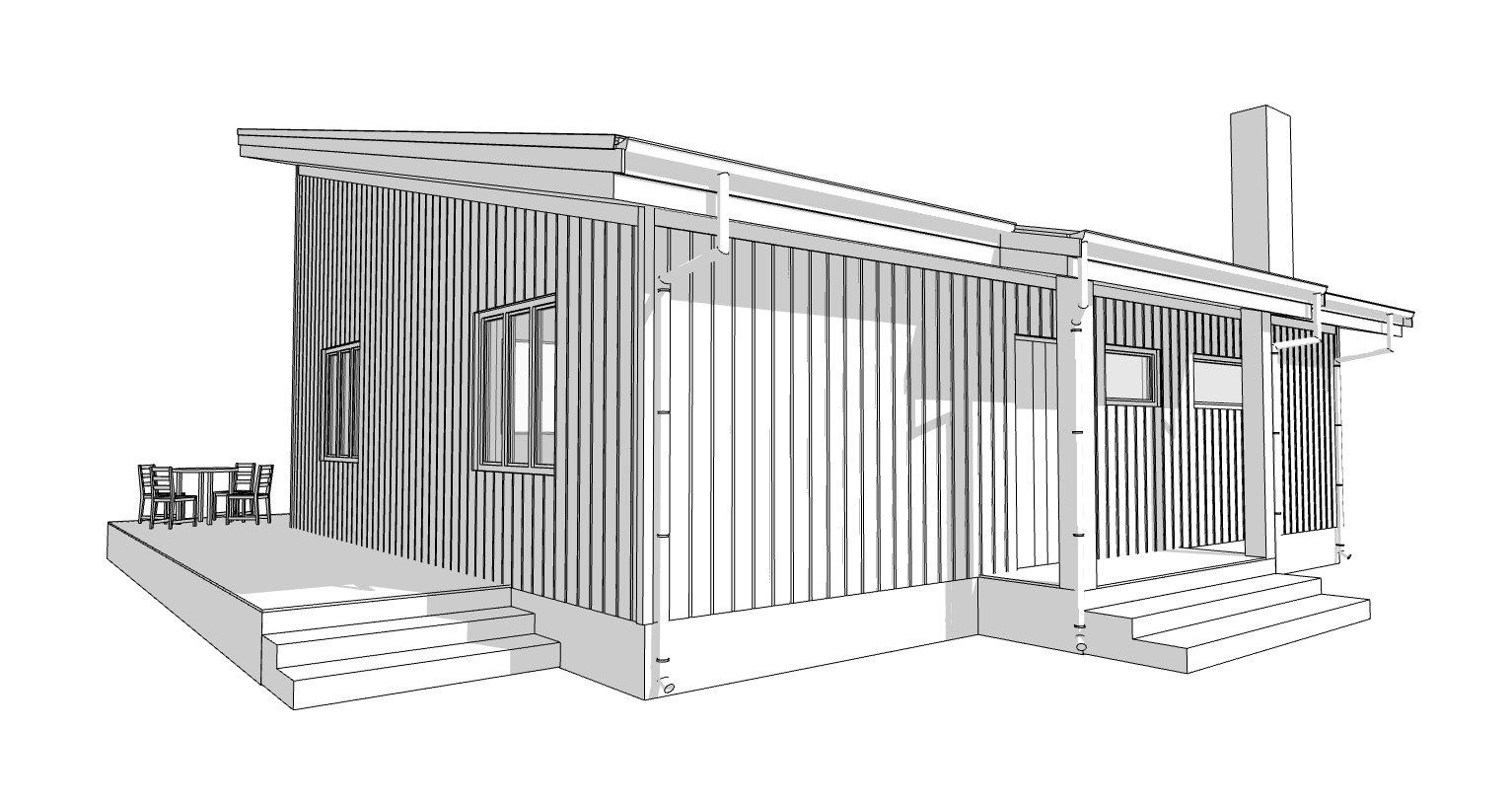

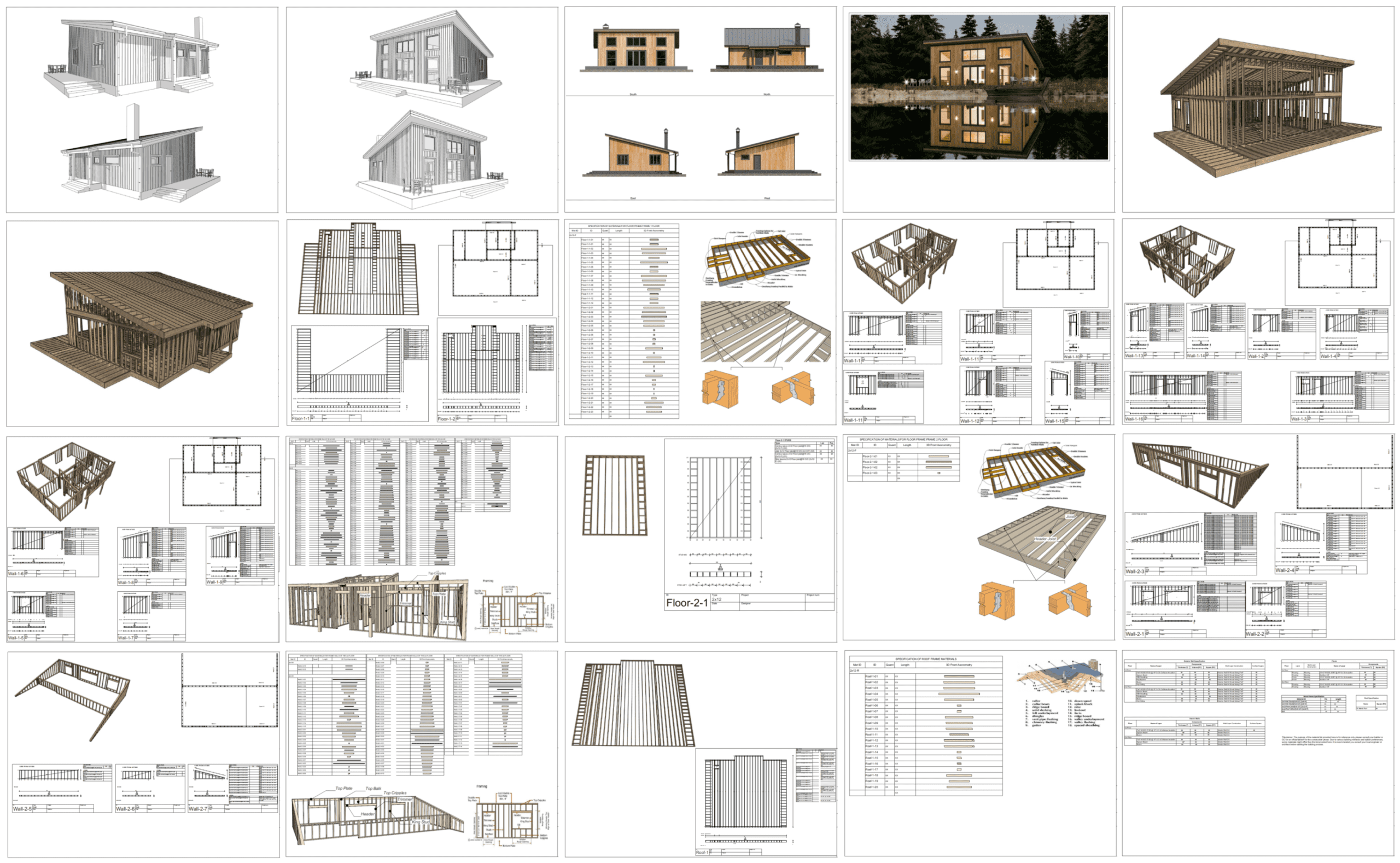

Complete architectural build plans (40 pages) for a Cozy Charming 36’x28’ modern cottage with an elegant and aesthetically pleasing interior.

This is an ideal cabin design for a 3-bedroom guest house or office space in your backyard, perfect for use as an ADU or for short-term rentals. The architectural plans detail a modern cottage with a simple, lean-to roof that’s easy to construct. These plans are construction-ready and adaptable to any plot of land.

The generous porch and patio areas provide ideal spots for enjoying the outdoors and hosting guests. Additional spaces include a convenient laundry/mechanical room and a welcoming foyer.

🌟 Limited Time Deal: Buy 2 HOME projects, Get 1 FREE! Don’t miss out.

🌟 What is included:

PDF file included, NO CAD files are provided.!

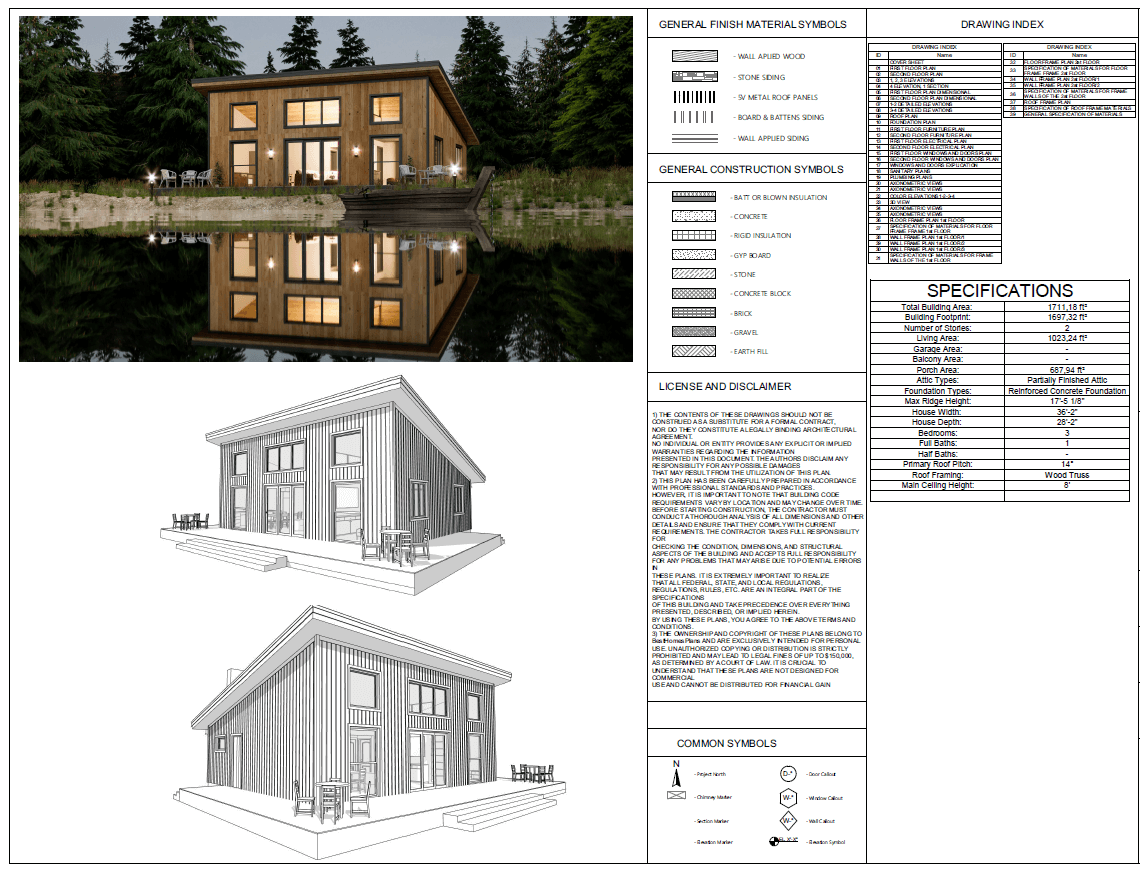

🌟 SPECIFICATIONS:

■ Total Building Area: 1711.18 ft²
■ Building Footprint: 1697.32 ft²
■ Number of Stories: 2
■ Living Area: 1023.24 ft²
■ Porch Area: 687.94 ft²
■ Attic Types: Partially Finished Attic
■ Foundation Types: Reinforced Concrete Foundation
■ Max Ridge Height: 17′-5 1/8″
■ House Width: 36′-2″
■ House Depth: 28′-2″
■ Bedrooms: 3
■ Full Baths: 1
■ Primary Roof Pitch: 14°
■ Roof Framing: Wood Truss
■ Main Ceiling Height: 8′

🌟 Explication First Floor:

■ Bathroom: 100.85 ft²
■ Bedroom-1: 112.00 ft²
■ Bedroom-2: 153.78 ft²
■ Closet: 29.33 ft²
■ Foyer: 34.83 ft²
■ Hall: 41.31 ft²
■ Kitchen-Dining Area: 193.42 ft²
■ Laundry/Mechanical Room: 48.96 ft²
■ Living Room: 145.37 ft²
■ Patio: 651.04 ft²
■ Rear Porch: 36.90 ft²

TOTAL: 1547.79 ft²

🌟 Explication First Floor:

■ Bathroom-3: 153.39 ft²

Due to variations in different States and local building departments, these plans are intended for temporary permitting but can be adjusted by your builder or designer.

We encourage you to subscribe to our store and add it to your favorites.

Since we strive to add at least one new project per week regularly,

Stay up to date with our latest offers.

After purchasing the plan, you will receive a PDF file from Ets.

The plan is provided for personal use only and is copyrighted by BestHomesPlans.

Commercial use or redistribution is strictly prohibited.

Thank you and Good Luck)

Materials List
Floor Plans

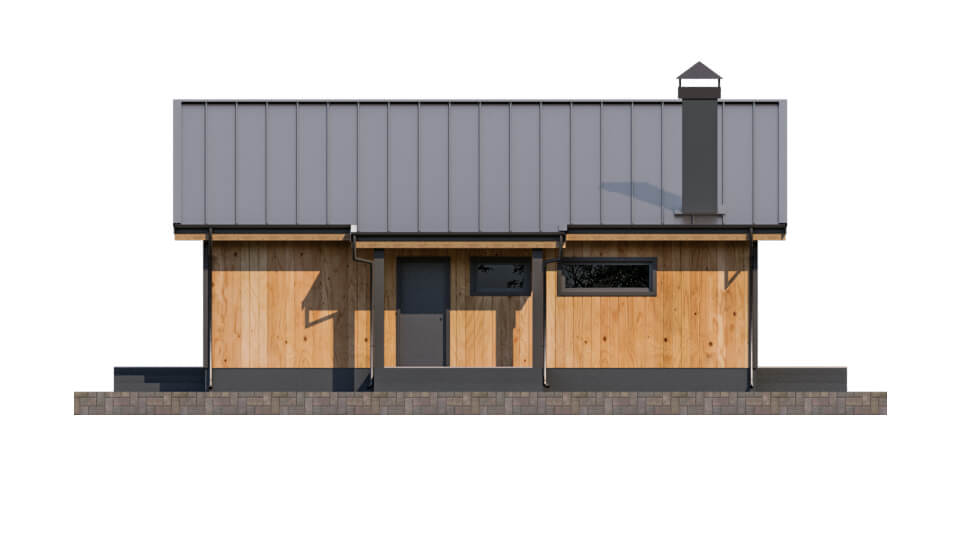

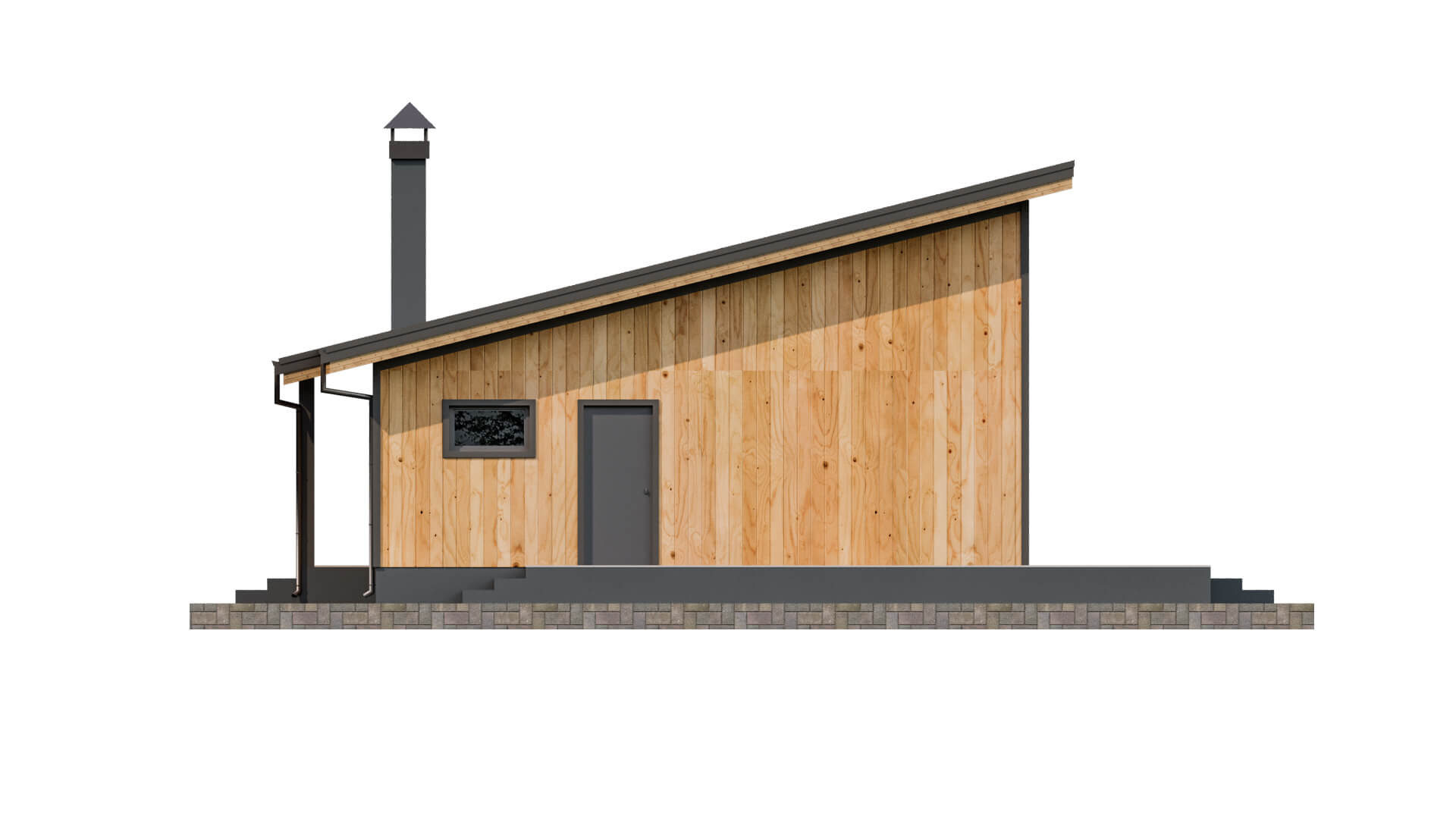

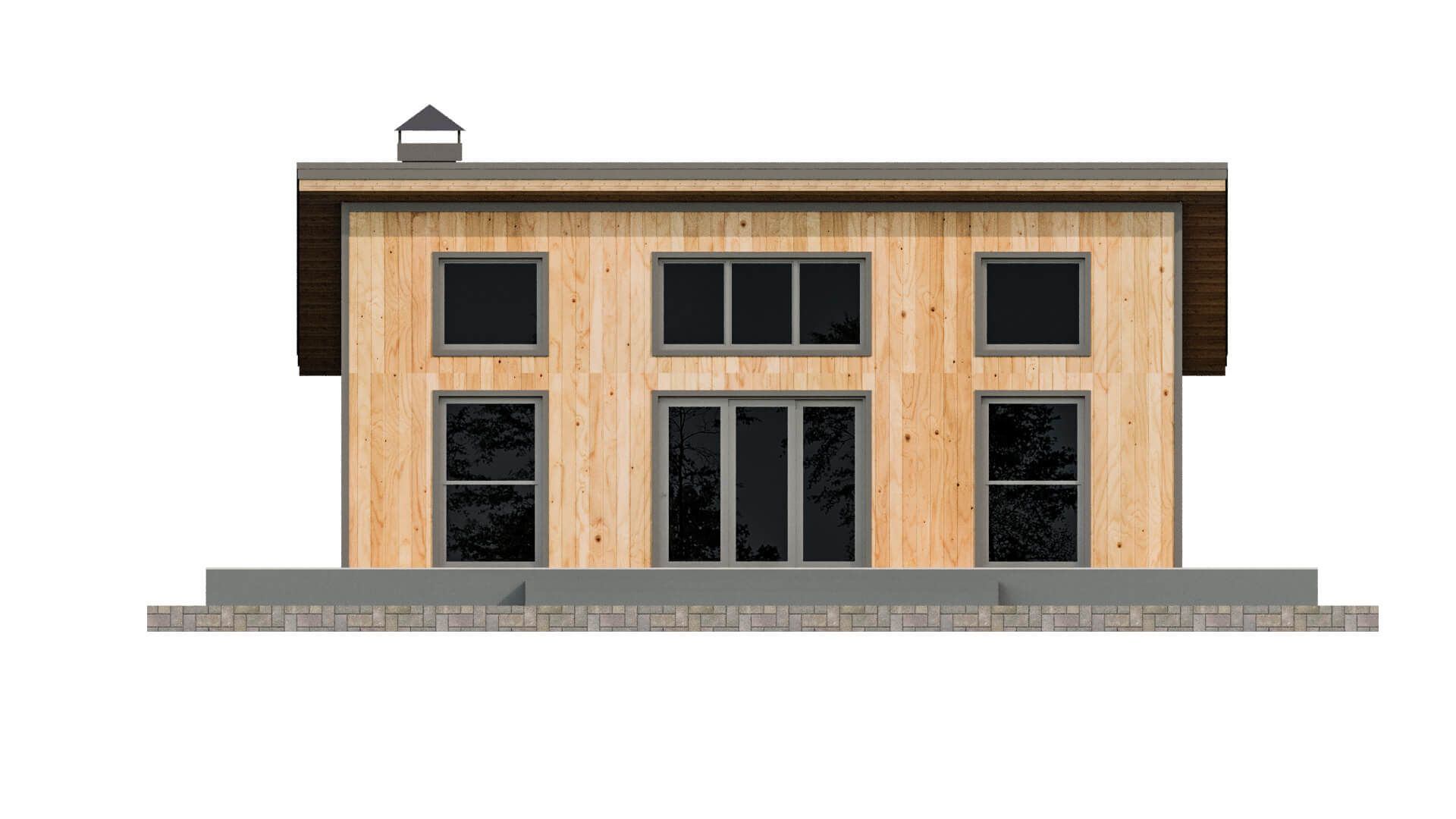

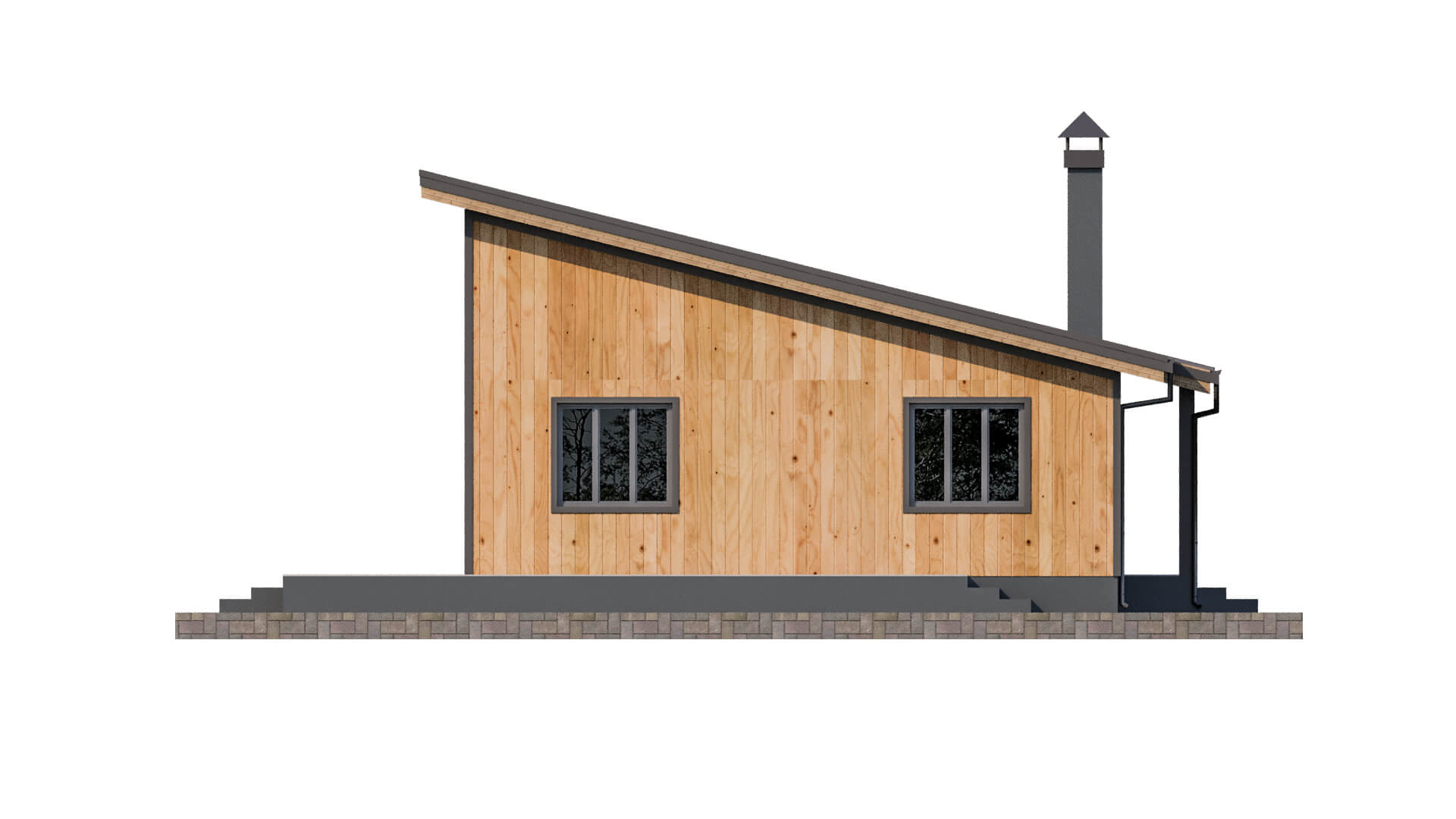

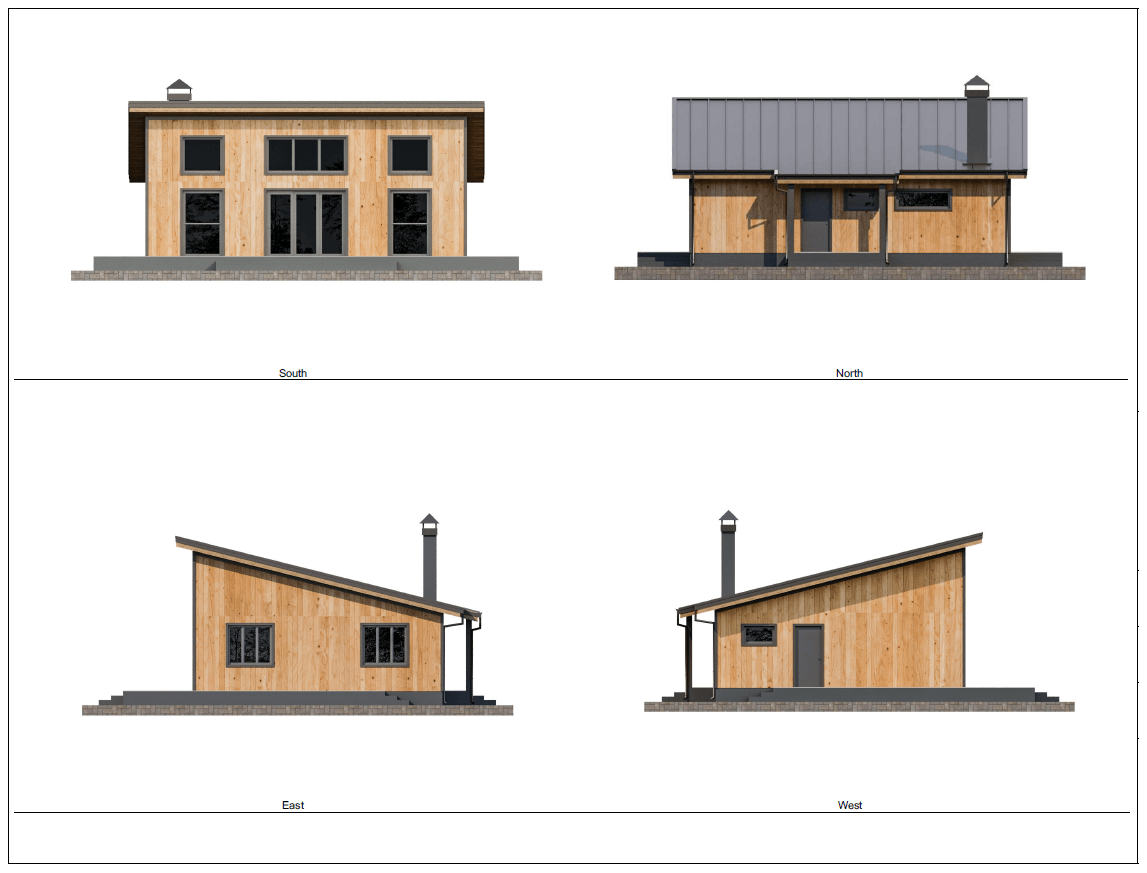

Elevations Plans
Roof Plan
Electrical Plan
Plumbing Plan
Foundation/Roofing Details
Door/Window Schedule
Fully dimensioned and annotated
Porches
